Push Button Switch Price in Pakistan 2026: 22mm, Metal Push Buttons and Control Stations
Quick answer: Push button switches cost from Rs 450 at ZZ Marts. Metal push buttons with LED rings cost Rs 450 to Rs 1,500 (16mm to 30mm), the 22mm industrial push button costs Rs 749, and ready-made push button control stations cost Rs 1,499 to Rs 2,999, from a single start button box to a 4-button gate control panel. Choose by panel hole size (22mm is the industrial standard), momentary or latching action, and NO or NC contacts.
Push button switch prices in Pakistan (2026)
Panel push buttons
| Button | Size | Price |
|---|---|---|
| Metal push button with LED ring | 16mm | Rs 450 |
| M07 metal push button (momentary) | 19mm | Rs 550 |
| Metal push button (on/off) | 19mm | Rs 600 |
| M08A metal push button, RGBY LED | 19mm | Rs 700 |
| Industrial push button (push and on/off versions) | 22mm | Rs 749 |

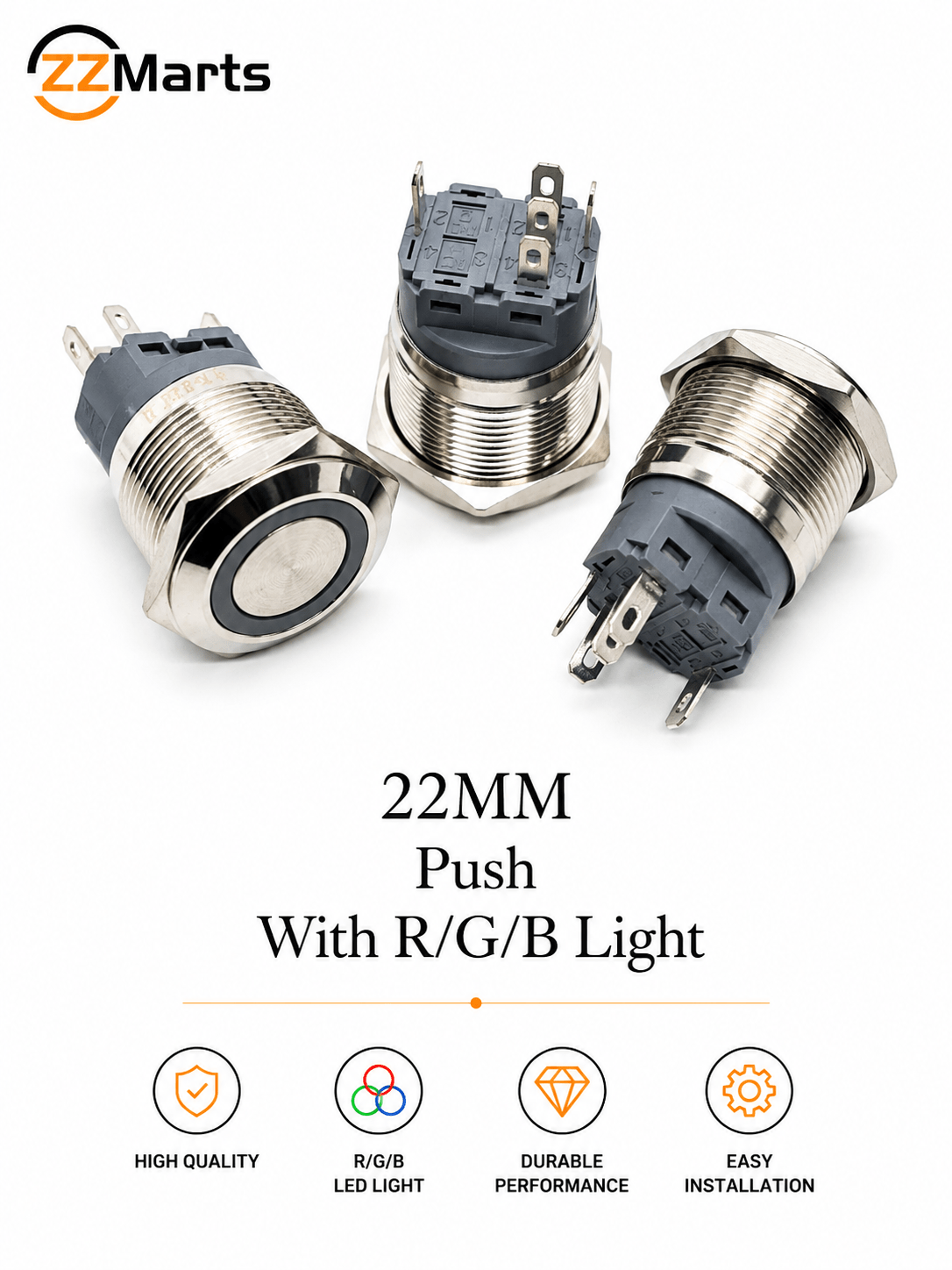

| Metal push button, RGB LED / on/off version | 22mm | Rs 750 |
| Metal push button, green LED ring (latching or momentary) | 25mm | Rs 1,350 |
| Metal push button, green LED ring (latching or momentary) | 30mm | Rs 1,500 |
Control stations and boxes
| Station | Buttons | Price |
|---|---|---|
| Single push button control box | Green start | Rs 1,499 |
| Key switch control box | Key operated | Rs 1,649 |
| Up / Down control station | 2 | Rs 1,949 |
| Left / Right control station | 2 | Rs 1,949 |
| Emergency stop rotary switch | Twist to reset | Rs 1,999 |
| Gate control panel | Up / Stop / Down | Rs 2,249 |
| Automatic gate control panel | Up / Down / Stop / Start | Rs 2,999 |
See more in metal push button switches and panic buttons and push switches.
Momentary or latching?
- Momentary: on only while pressed. Use for start buttons, door bells, horns, jog controls and signals to a PLC.
- Latching: press once for on, again for off. Use for power switches and mode selection.
The 25mm and 30mm metal buttons come in both versions; choose on the product page.
Choosing a panel button
- Hole size: 22mm is the standard for industrial panels; 16mm and 19mm suit smaller boxes and consoles; 25mm and 30mm are big, easy-to-hit buttons.
- Contacts: NO for start, NC for stop. Many buttons have both.
- Light: LED ring buttons show status, such as green for running.
- Body: metal buttons resist knocks and look clean on front panels; plastic industrial buttons are lighter and cheaper.
Control stations for motors, gates and shutters
A control station saves you building a box. The Up / Down and Left / Right stations suit hoists, shutters and machines that move in two directions; the Up / Stop / Down and 4-button gate panels control automatic gates and barriers; and the key switch box stops anyone without the key from operating the motor. For gate automation, see our sliding gate motor guide.
Rocker switches
For simple on/off power switching in equipment and DIY projects, rocker switches start at Rs 280 for a pack of 4 (KCD4 16A), with illuminated and on-off-on versions.
Frequently asked questions
How much does a push button switch cost in Pakistan?
At ZZ Marts, metal push buttons cost Rs 450 (16mm with LED ring) to Rs 1,500 (30mm with LED ring), 19mm and 22mm metal buttons Rs 550 to Rs 750, and a 22mm industrial push button Rs 749. Push button control stations cost Rs 1,499 to Rs 2,999.
What is the difference between a momentary and a latching push button?
A momentary button is on only while you hold it, like a door bell or a start button. A latching button stays on when you press it and turns off when you press it again, like a power switch.
What size hole does a 22mm push button need?
A 22mm push button fits a 22mm round hole in the panel, which is the most common size on industrial control panels. 16mm, 19mm, 25mm and 30mm buttons need holes of those sizes.
What is a push button control station?
A push button control station is a ready-made box with buttons already fitted, such as Up / Down, Left / Right or Up / Stop / Down. It is used to control motors, gates, shutters, hoists and machines without building a panel.
Why use a key switch?
A key switch only works with its key, so only authorised staff can start a machine, open a gate or change a mode. It stops accidental or unauthorised operation.
What do NO and NC mean on a push button?
NO (normally open) contacts close when you press the button, for start or signal functions. NC (normally closed) contacts open when you press it, for stop functions. Many buttons have both.
