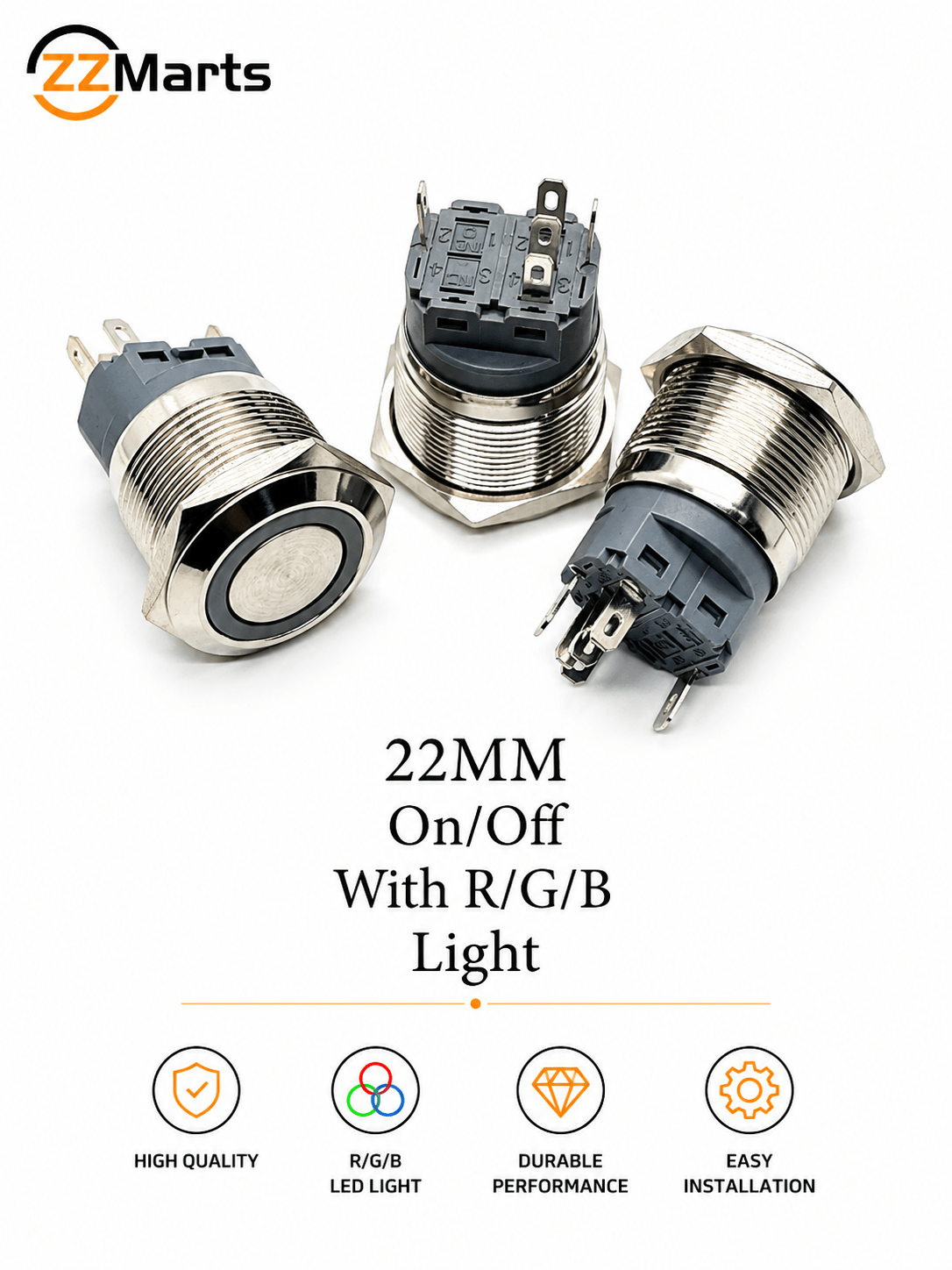

22MM Metal On/Off Push Button Switch with RGB LED Light

Product Description

The 22MM Metal On/Off Push Button Switch with RGB LED Light is a premium industrial-grade switch designed for applications that require both reliable switching and attractive visual indication. Featuring a rugged stainless steel body and integrated RGB LED illumination, this switch combines durability, functionality, and modern aesthetics in a single solution.

Designed with a maintained ON/OFF mechanism, the switch remains in its selected position until pressed again, making it ideal for power control, machine operation, automation systems, and custom electronic projects. The integrated RGB LED ring provides clear status indication while adding a professional appearance to control panels and equipment.

Manufactured from high-quality metal materials, the switch offers excellent resistance against corrosion, wear, vibration, and harsh operating environments. Its standard 22MM mounting size allows seamless installation into control panels, industrial machinery, automotive applications, and smart electronic systems.

A latching On/Off button that holds its position. This 22mm metal switch stays engaged after you press it and releases only when pressed again. That is the behaviour you want for a power switch, a machine enable, a lamp control, or anything that must remain on without somebody holding it down. If you need a button that is active only while pressed, our momentary version is the correct choice instead.

Latching or momentary, and how to decide. This is the first thing to settle, because the wrong type means the panel does not behave as intended. A latching button, sometimes called maintained or self locking, holds state: press once for on, press again for off. A momentary button is live only while held. Use latching for main power switches, machine enables, work lamp controls, fan and extractor switches, and any function that should stay on until deliberately turned off. Use momentary for start buttons, jog controls, and test functions. If you are replacing a failed button, check which type the old one was rather than assuming from appearance, because the two look identical from the front.

Why latching suits a power switch specifically. A power or enable function needs to survive the operator walking away. With a momentary button the circuit would drop the instant they released it, which is why momentary start buttons rely on a contactor latching the circuit electrically. A latching button does that mechanically, which is simpler and means fewer components in a straightforward panel. For a small control panel or a standalone machine, this is often the cleanest approach.

The 22mm standard. 22mm is the panel cutout diameter and the international standard for industrial control devices. It means a replacement fits any existing 22mm hole regardless of who made the original, and you can mix buttons, selector switches, and indicator lamps from different sources in one enclosure without redrilling. When ordering a replacement, measure the hole rather than the old button body.

The RGB LED, and the check that prevents a dead button. The illuminated ring shows at a glance whether the circuit is on, which is genuinely useful on a latching switch because the button position alone can be hard to read across a plant room. Confirm your control voltage before ordering, since LED buttons are made for specific supplies, commonly 12V, 24V, or 220V. Connecting one to the wrong voltage either leaves it unlit or destroys the LED immediately. Tell us your supply and we will send the correct version.

NO and NC contacts. Buttons are supplied with normally open contacts, normally closed contacts, or both. A latching On/Off switch controlling power typically uses NO, so the circuit completes when the button is engaged. Where a function must fail safe, NC is used so a broken wire produces the safe state rather than leaving equipment running. Tell us what the button controls and we will confirm the configuration.

Where these are fitted. Machine control panels, motor starter boards, workshop and factory equipment, pump and compressor panels, generator control boards, lighting and extractor controls, and building services panels. Anywhere an operator needs a switch that holds its state and is obvious at a glance.

Metal body for industrial service. Plastic panel buttons crack in workshop conditions, and a cracked body admits dust and moisture into the contacts. A metal body handles knocks, heat, and the dusty conditions typical of Pakistani factories and workshops, which matters on a panel expected to run for years rather than months.

Check panel thickness. Panel mount devices clamp within a maximum thickness. Standard sheet steel enclosures are normally fine, but thick panels or those with additional facing material may exceed it. Measure if there is any doubt before ordering.

This is not an emergency stop. Although this button latches, it is a standard control device and must not be used as an emergency stop. Emergency stops require a mushroom head, a specific latching and release action, normally closed contacts, and are subject to particular safety expectations. Never substitute an ordinary latching button for one. Ask us and we will supply the correct emergency stop device for your panel.

How do I know if I need latching or momentary? Latching if the function must stay on when nobody is touching it. Momentary if it should only be active while pressed. Tell us what it controls.

What LED voltage should I order? Match your control voltage, commonly 12V, 24V, or 220V. Tell us your supply.

Will it fit my existing hole? If the panel cutout is 22mm, yes.

Can I use it as an emergency stop? No. Emergency stops are a specific device type. Ask us and we will supply the right one.

Buying from ZZ Marts. In stock at our Karachi (Saddar) and Lahore stores with nationwide delivery, supplied by Zam Zam Traders, trading in electrical and industrial components since 2005. We also stock momentary push buttons, push button control stations, emergency stop devices, selector switches, indicator lamps, tower signal lights, and terminal blocks. Tell us your control voltage and application and we will supply the correct switch type and contact arrangement.
