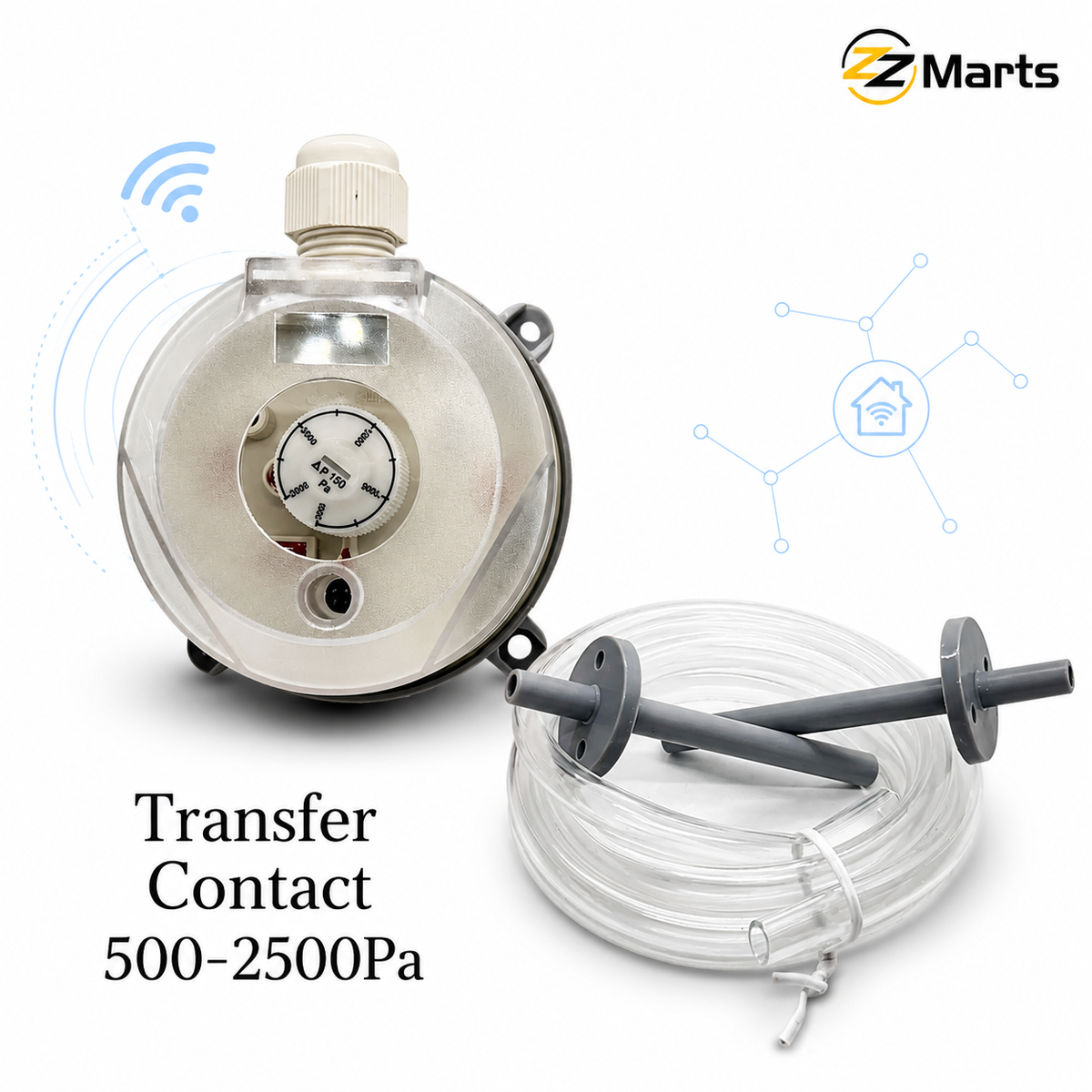

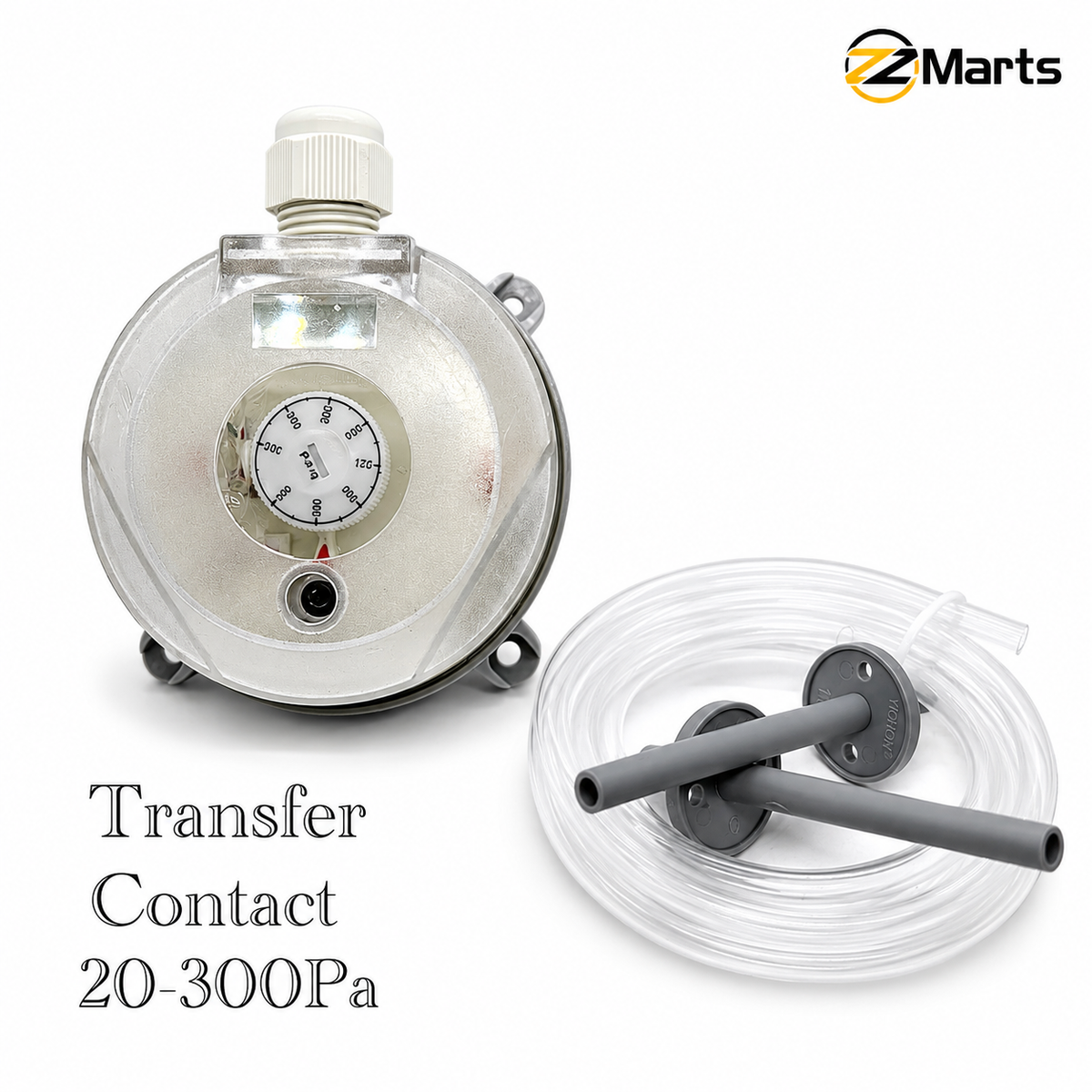

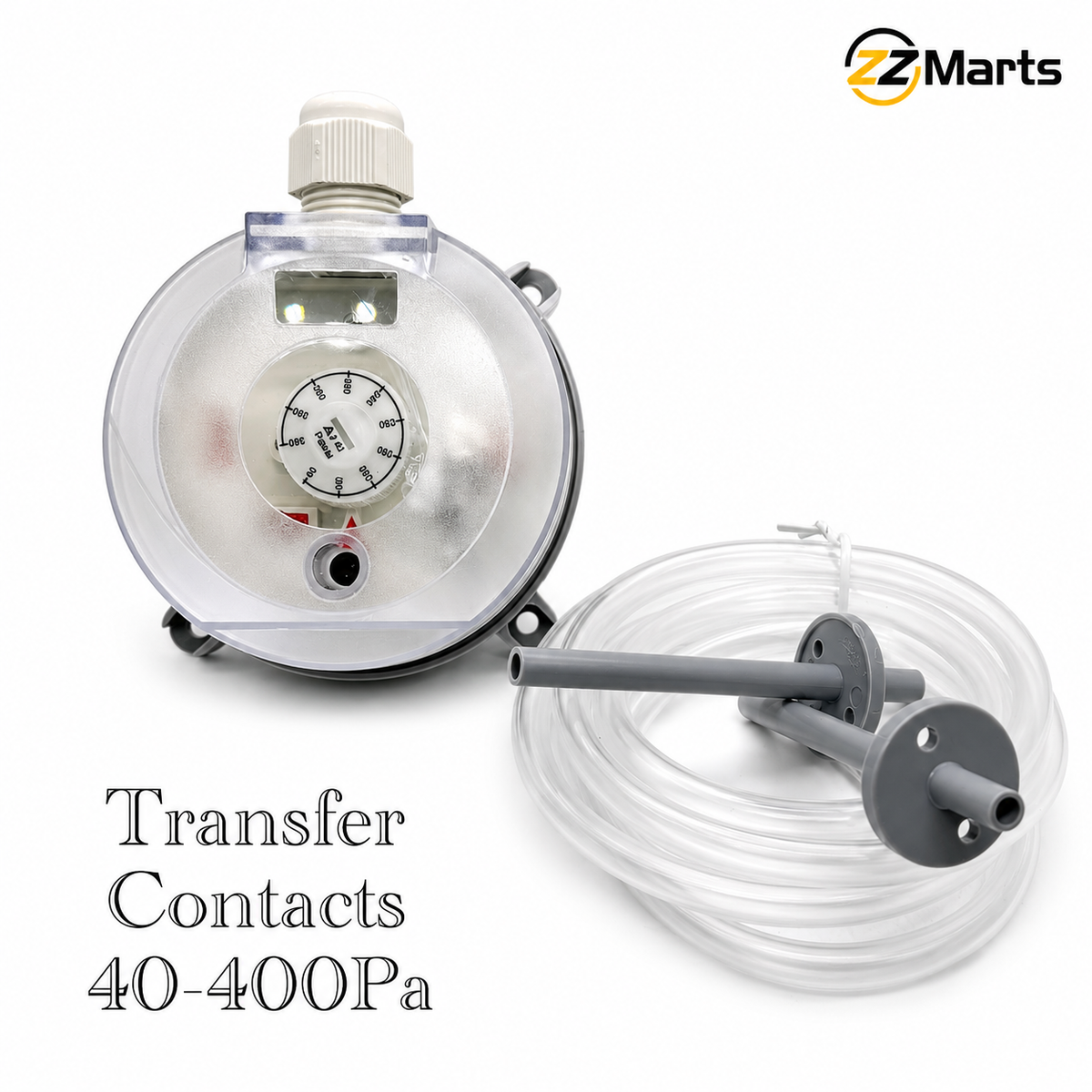

ZZ MartsCMP-AIR-DPS-200
Air Differential Pressure Switch – Adjustable HVAC Duct Switch
- Multiple Adjustable Ranges from 20 Pa up to 5000 Pa

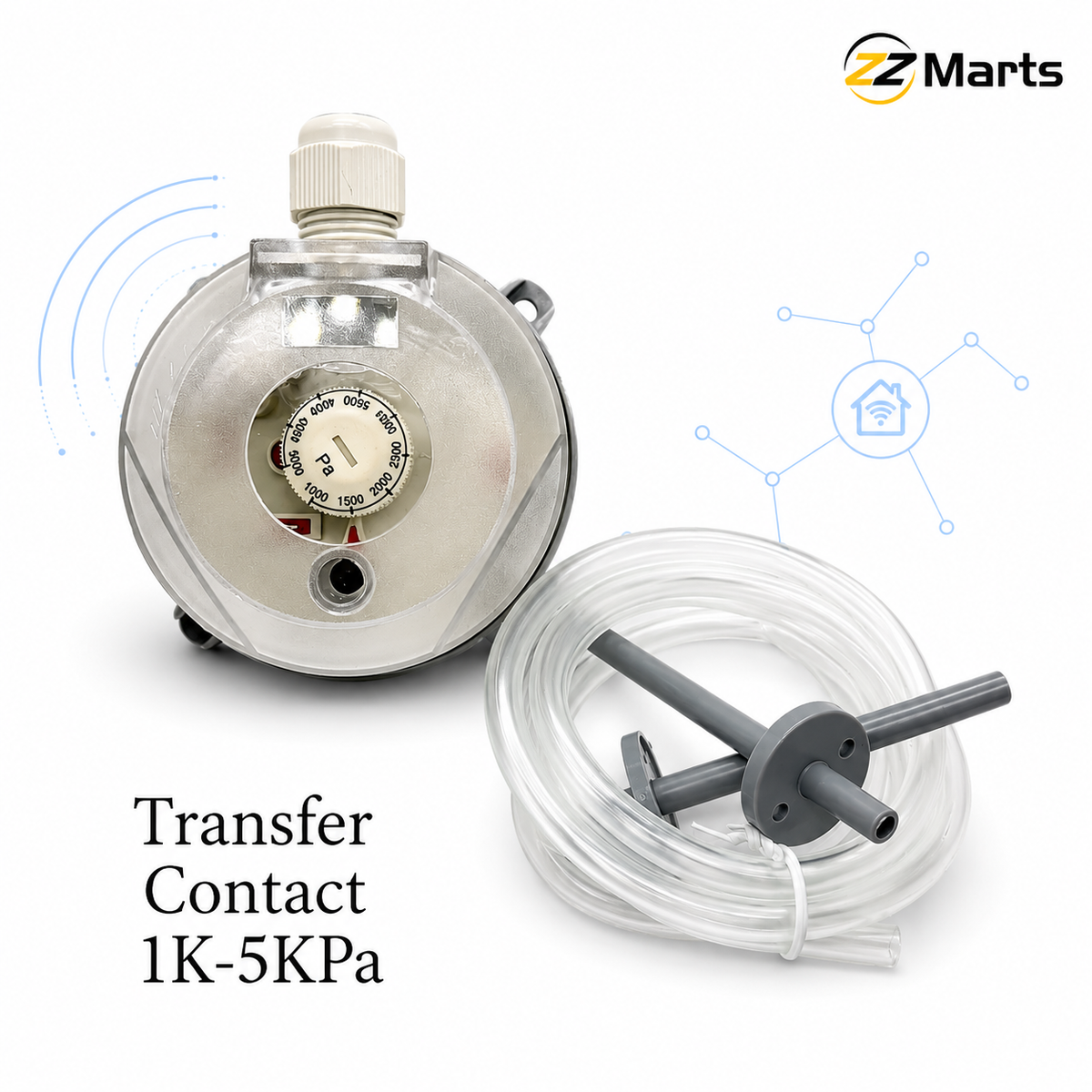

- Scaled Dial Under Clear Cover for Quick Setting
- Senses Differential Air Pressure Across Two Ports
- Switches an Output Contact When the Set Pressure Is Reached

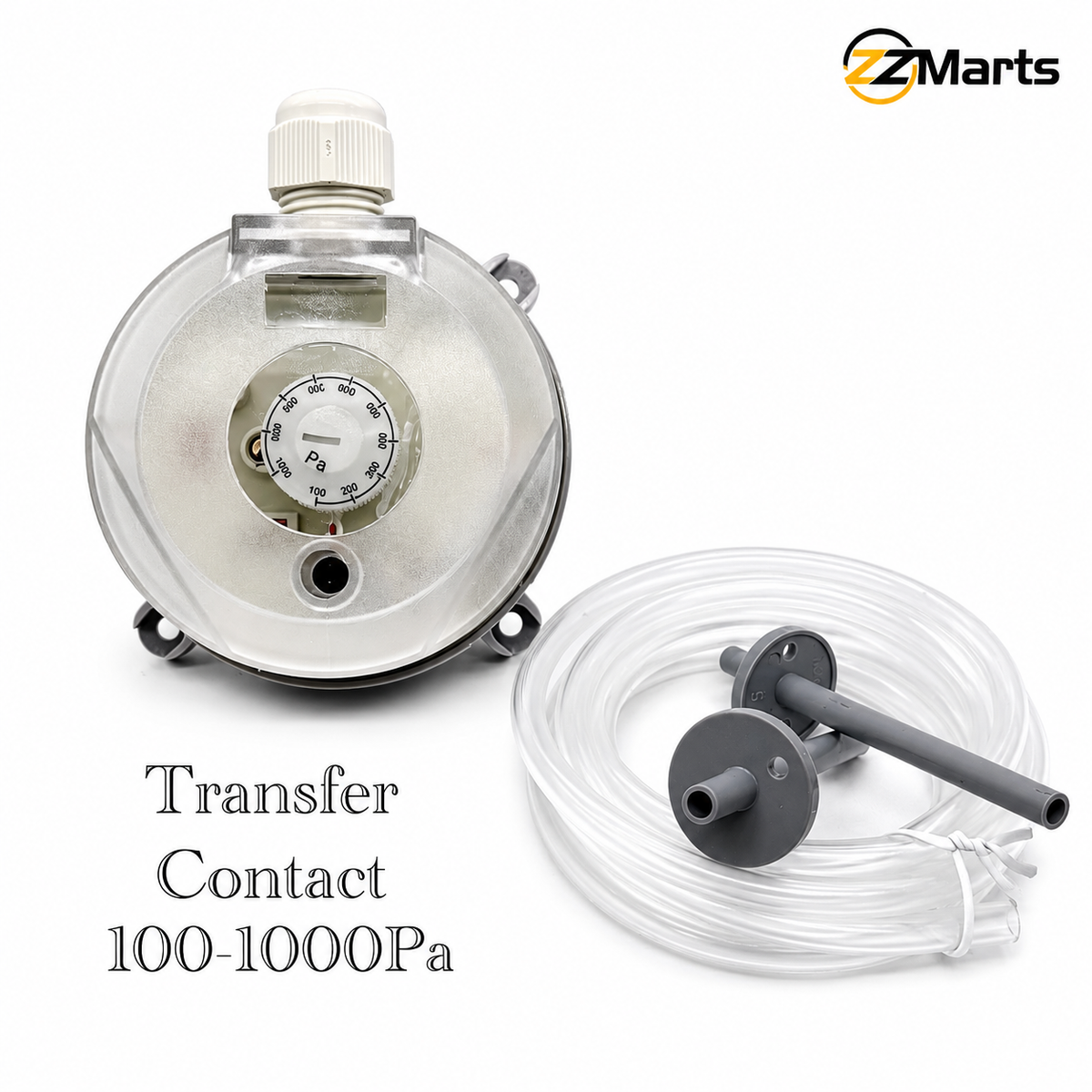

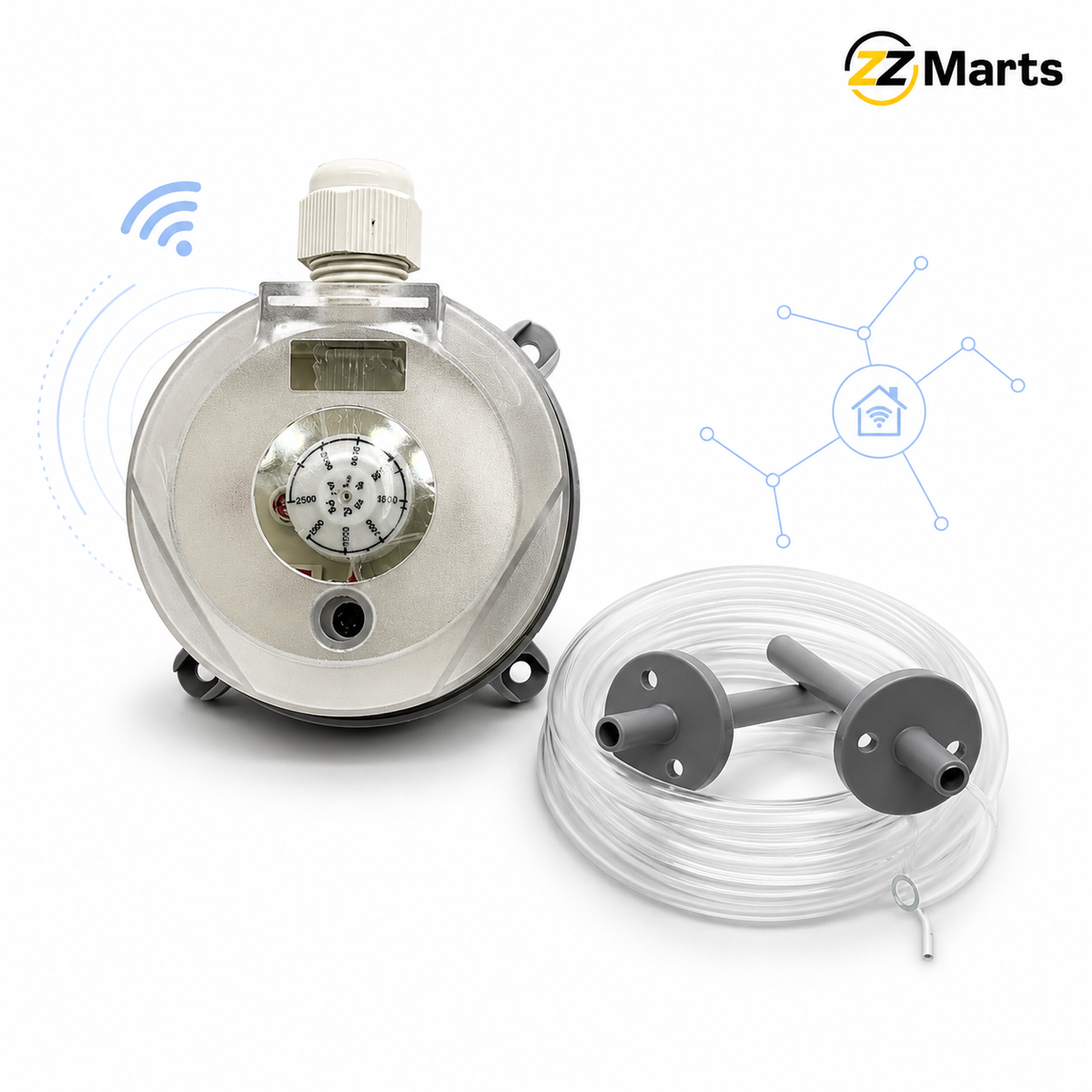

- Duct Air-Pickup Probe and Sensing Tubes Included
- Surface / Wall Mountable Housing with Fixing Tabs
- Cable Gland Wiring Entry
- Diaphragm-Type Mechanical Design
Price includes tax. Delivery calculated at checkout.
Why our price is lower
We import directly and supply the trade from two shops in Karachi and Lahore. There is no middleman between the container and you. Same product, fewer hands.
In stock, ready to ship
Limited stock1 year service warranty Void if burnt or physically damaged Claim it at either shop, or send it back — we handle the manufacturer for you. Invoice included with every order.
Will this fit my setup?
- Build: Plastic. Worth checking if this is going outdoors or somewhere damp.
- Still not sure? Send a photo of the old part, the door or the existing setup. We will tell you what fits - usually within minutes during shop hours.
- Free delivery on orders over Rs 5,000
- 2-3 working days to Karachi, Lahore and Islamabad · 3-5 elsewhere
- Cash on delivery available nationwide
- Order before 4pm for same-day delivery in Karachi and Lahore · prepaid orders only
- Save 4% when you pay by card or bank deposit · use code PREPAID4
- Free collection from our Karachi or Lahore shop
- Genuine product
- 7-day returns
- Secure checkout
- Trading since 2005
Not sure this is the right one? Ask us on WhatsApp - we will tell you straight.
Air Differential Pressure Switch – Adjustab...
Rs.2,400.00Product details
Product Description
The Air Differential Pressure Switch is an adjustable pressure switch used to monitor the difference in air pressure between two points and switch an electrical contact when a set pressure is reached. Choose the range that suits your application — from 20 Pa up to 5000 Pa — and set the exact switching point using the scaled dial under the clear cover.
It is designed for HVAC and ventilation systems, where it is commonly used for airflow proving across fans, dirty-filter detection on air handling units, and monitoring duct or room pressure. The unit connects to the airflow through the included duct air-pickup probe and flexible sensing tubes, so it can be fitted to a duct or plenum during installation.
The switch uses a diaphragm-operated mechanism and a built-in changeover contact, so it does not need its own power supply to operate — it simply opens or closes your control or alarm circuit at the set pressure. The housing is surface mountable using its integral fixing tabs, with a cable gland for tidy wiring entry.
Select your required pressure range from the options above. Contact rating, ingress protection and exact dimensions are not marked on this unit; if your application needs specific electrical or IP figures, contact us before ordering and we will confirm suitability.
Specifications
| Model / SKU | CMP-AIR-DPS-200 |
|---|---|
| Material | Plastic |
Specifications are provided by the manufacturer and may change without notice. Please confirm before installation.
Frequently asked questions
What does this air differential pressure switch do?
It monitors the air-pressure difference across HVAC ducts and filters, switching an output when it crosses an adjustable set point.
Where is it used?
HVAC, ducting and filter monitoring. Browse more Pressure Sensors & Switches.
Do you deliver nationwide and is there a warranty?
Yes — nationwide delivery, cash on delivery, 1-year warranty.
