How to Install a Tuya Smart Lock - Step-by-Step Beginner Guide

Introduction

Tuya smart locks are becoming increasingly popular in Pakistan as more homeowners and business owners upgrade to modern security systems. Traditional locks are slowly being replaced by smart locks because they offer better protection, convenience, and multiple unlocking options such as fingerprints, passwords, RFID cards, and mobile apps.

Many people hesitate to buy smart locks because they think installation is complicated. The truth is that installing a Tuya smart lock is straightforward when you follow the correct steps.

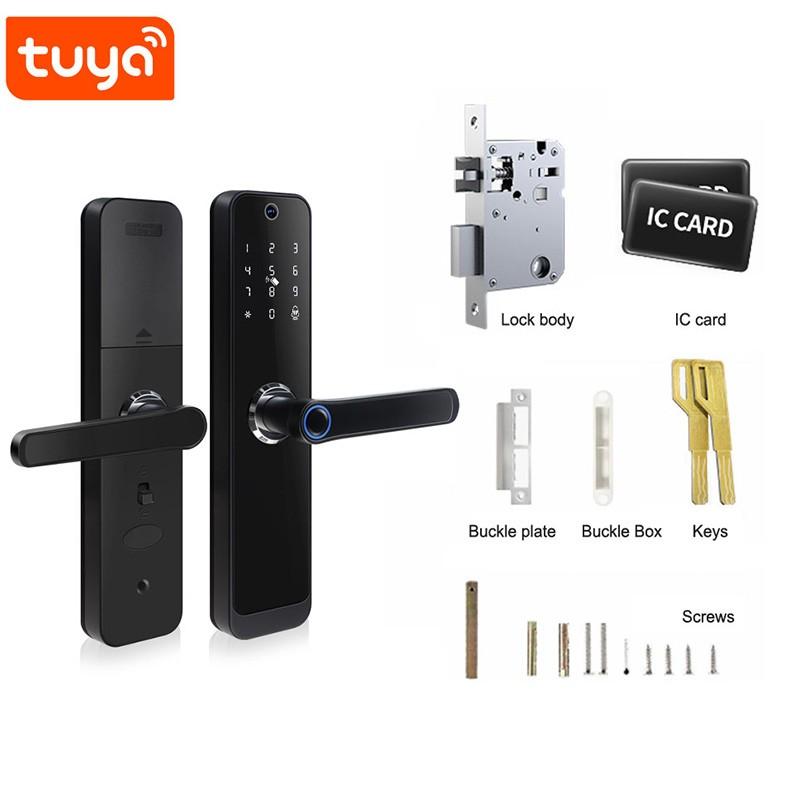

What Comes in a Tuya Smart Lock Package?

• Front panel (with fingerprint or keypad)
• Back panel
• Lock body (mortise)
• Screws and mounting accessories
• RFID cards
• Mechanical backup keys
• User manual

Tools Required for Installation

• Screwdriver (Phillips type)
• Drill machine (if new holes are required)
• Measuring tape
• Marker or pencil
• Chisel (optional, for adjustments)

Step 1 - Remove the Old Traditional Lock

Use a screwdriver to remove screws from the handle and lock body, then carefully pull out the old lock components. After removal, clean the lock area and check if the existing hole matches the smart lock size. If adjustments are needed, use a drill or chisel carefully.

Step 2 - Install the Lock Body (Mortise)

Insert the lock body into the door slot. Make sure the latch direction matches the door closing direction. Align the lock body properly and secure it with screws. After installation, test the bolt movement manually to ensure smooth operation.

Step 3 - Install the Front Panel

Place the front panel on the outer side of the door and pass the connecting cable through the door hole. Make sure the front panel is aligned properly and sits flat against the door. Hold the panel carefully while attaching the back panel.

Step 4 - Install the Back Panel

Attach the back panel from the inner side of the door and connect the cable from the front panel. Secure both panels using screws. After mounting, insert batteries into the battery compartment.

Step 5 - Turn On the Smart Lock

After installing batteries, turn ON the smart lock. Most locks will activate automatically and you may hear a startup sound. Check if the keypad or fingerprint sensor lights up.

Step 6 - Connect the Lock to the Tuya Smart App

1. Open the app
2. Tap "Add Device"
3. Select smart lock
4. Connect to WiFi
5. Register fingerprints
6. Set passwords

Step 7 - Test the Smart Lock

Try unlocking using fingerprint, password, RFID card and the mobile app. Check locking and unlocking multiple times.

Best Doors for Installing Tuya Smart Locks

• Wooden doors
• Metal doors
• Apartment doors
• Office doors

Before purchasing, check door thickness and compatibility.

Common Installation Mistakes to Avoid

One common mistake is incorrect alignment of the lock body. Loose screws can also cause malfunction. Using weak batteries reduces performance. Skipping testing steps may leave hidden issues.

Maintenance Tips After Installation

Replace batteries when low battery alerts appear. Clean fingerprint sensors regularly. Check screws periodically. Update the Tuya app when required.

Tools You Need

• Phillips screwdriver (usually included in the box)
• Tape measure to confirm your door thickness and existing hole spacing
• Pencil for marking screw positions if replacing an old mortise lock
• Smartphone with the Tuya or Smart Life app installed and WiFi details ready

Frequently Asked Questions

How long does it take to install a Tuya smart lock?

Most installations take 30-60 minutes if the door already has standard lock cutouts. It can take longer if you're replacing an old mortise lock and need to adjust the door prep.

Will a Tuya smart lock fit my existing door?

Most models are designed to fit standard door thicknesses and backset measurements, but it's worth measuring your door and comparing it to the product's spec sheet before buying, especially for older or non-standard doors.

Do I need an electrician?

No - Tuya smart locks are battery-powered and designed for DIY installation with basic tools. No house wiring is involved.

Conclusion

With simple tools and correct installation steps, most doors can be converted into secure smart entry systems.
