ZKTeco X3 Fingerprint Door Access in DHA Phase 2, Lahore
Fingerprint, PIN and MIFARE card door access for one door in DHA Phase 2, Lahore: a ZKTeco X3, 12V drop bolt lock and steel exit button for Rs 16,798 at listed prices, including Rs 3,000 installation.
- Location
- DHA Phase 2, Lahore
- System
- Standalone fingerprint access control with drop bolt lock
- Budget
- Rs 16,798 at listed prices, including Rs 3,000 installation
- Completed
- October 2026
- 3ways in: fingerprint, PIN, card
- 1 pressto exit from inside
- 12Vdrop bolt lock
- Rs 3,000installation
In short: ZZ Marts fitted fingerprint door access to a single door in DHA Phase 2, Lahore, near Packages Mall. A ZKTeco X3 terminal on the wall opens a 12V drop bolt lock with a fingerprint, a PIN code or a MIFARE card, and a stainless steel exit button on the inside lets people out with one press. Installation cost Rs 3,000, and the same setup costs Rs 16,798 in total at our listed prices.
Project at a glance
| Location | DHA Phase 2, Lahore (near Packages Mall) |
| System | Standalone fingerprint access control with an electric drop bolt lock |
| Ways to open | Fingerprint, PIN code or MIFARE card from outside; exit button from inside |
| Scope | Supply, wiring, installation and testing on 1 door |
| Cost | Rs 16,798 at listed prices: equipment Rs 13,798, installation Rs 3,000 |
| Completed | October 2026 |
What we installed
| Equipment | Qty | Price | What it does |
|---|---|---|---|
| ZKTeco X3 fingerprint and keypad terminal | 1 | Rs 8,500 | Checks the fingerprint, PIN or card and releases the lock |
| 12V drop bolt lock | 1 | Rs 4,299 | Drops a steel bolt into the door to hold it shut |
| Stainless steel exit push button | 1 | Rs 699 | Opens the door from inside with one press |
| 12V 1.67A power adapter | 1 | Rs 300 | Powers the terminal and the lock |
| Installation and testing | 1 door | Rs 3,000 | Fitting, wiring and a full test of every way in and out |
| Total | Rs 16,798 | Equipment at listed prices Rs 13,798, plus installation Rs 3,000 |
How it works

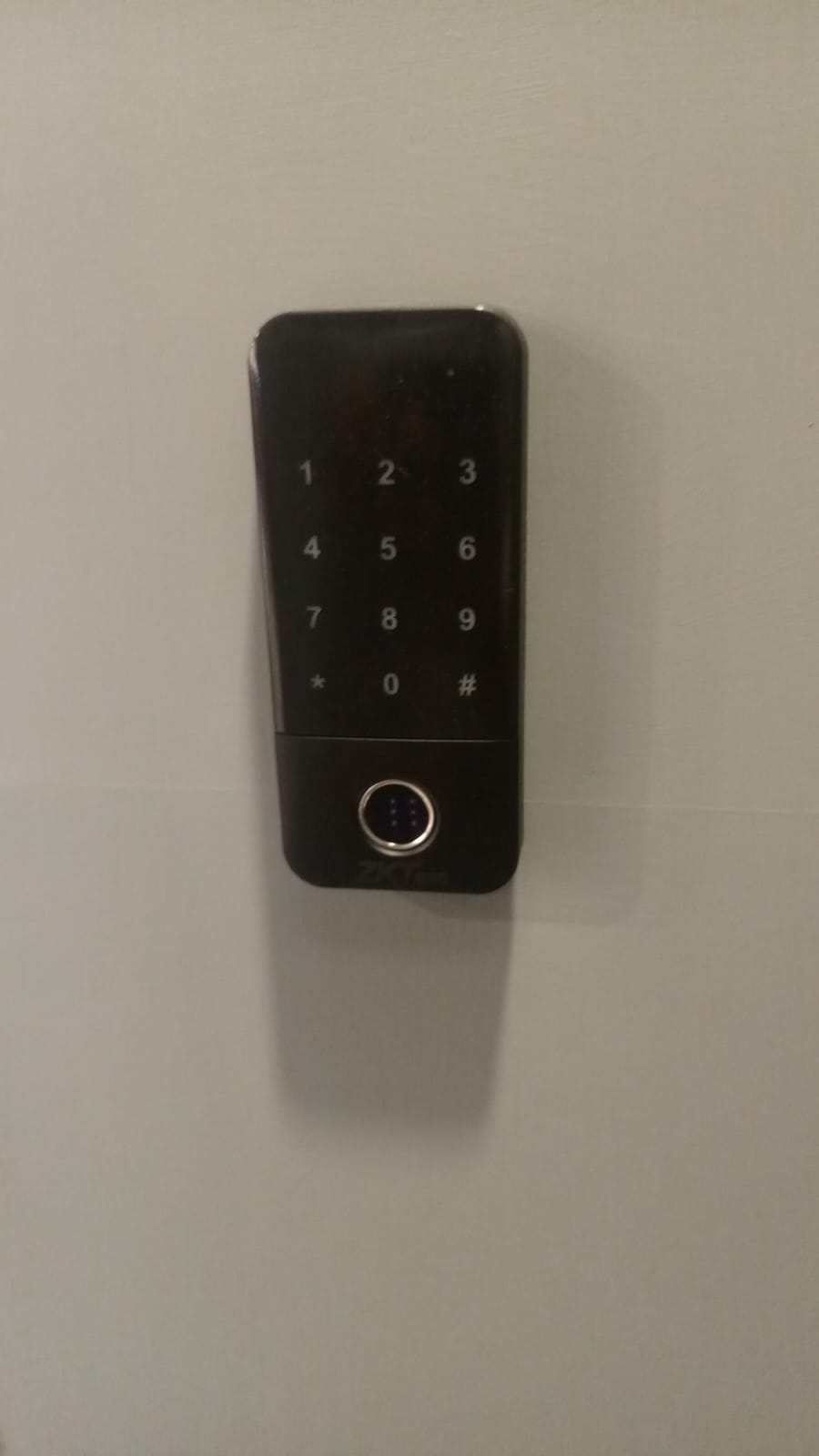

The ZKTeco X3 is mounted on the wall beside the door at hand height. Users open the door with a registered fingerprint, a PIN on the touch keypad, or a MIFARE card. The X3 then releases the drop bolt for a few seconds so the door can be pushed open, and the bolt drops back into place when the door closes.
The drop bolt lock sits in the top of the door frame, with its strike plate on the top edge of the door. The lock runs on 12V and has a status light, so it is easy to see at a glance whether the door is locked.
Watch it work
A MIFARE card tapped on the ZKTeco X3 releases the drop bolt, and the door opens.
Why a drop bolt lock
A drop bolt lock drops a solid steel bolt into the door, which holds it firmly shut. It is also fail-safe: when power is cut, the bolt retracts and the door opens, so nobody can be locked in during an emergency. If the door must stay locked during load-shedding, power the terminal and lock from a backup supply such as the ZZ-PS-5A 5A UPS. See our access control system price guide for other lock types.
Planning door access for your home, office or shop?
Choose how people will get in. Fingerprints cannot be lent or lost; PIN codes are easy for visitors; cards suit staff who change often. The ZKTeco X3 handles all three, so you do not have to pick just one.
Always fit an exit button. People inside should never need a fingerprint or card to leave.
Decide what should happen in a power cut. A fail-safe lock opens; a backup power supply keeps it locked.
Frequently asked questions
How much does a fingerprint door access system cost in Lahore?
On this DHA Phase 2 job the equipment was a ZKTeco X3 fingerprint terminal (Rs 8,500), a 12V drop bolt lock (Rs 4,299), a stainless steel exit button (Rs 699) and a 12V 1.67A power adapter (Rs 300), and installation was Rs 3,000: Rs 16,798 in total at listed prices.
Can the ZKTeco X3 open a door with a card?
Yes. The ZKTeco X3 reads MIFARE (13.56 MHz) cards. On this installation the door opens with a fingerprint, a PIN code or a MIFARE card.
What happens to a drop bolt lock in a power cut?
The drop bolt lock used here is fail-safe: it unlocks when power is lost, so nobody is trapped. To keep the door locked during load-shedding, run the lock and reader from a backup power supply such as the ZZ-PS-5A UPS.
How do people get out of a door with access control?
A push-to-exit button is fitted on the inside. Pressing it releases the lock for a few seconds, so nobody needs a fingerprint or card to leave.
Does ZZ Marts install access control in DHA Lahore?
Yes. ZZ Marts has a store in Garhi Shahu, Lahore, and installs access control, CCTV and alarm systems across Lahore, including DHA.
