How to Install a Wireless Theft Alarm System Using Tuya App - Step-by-Step Guide

Introduction

Wireless theft alarm systems supported on the Tuya Smart App are becoming one of the most popular security solutions in Pakistan. Many homeowners, shop owners, and office managers are now installing wireless alarm systems to protect their property from theft and unauthorised access.

One of the biggest advantages of wireless alarm systems is their easy installation. Unlike traditional wired systems, they do not require complicated wiring or major wall modifications. This makes them suitable for both new and existing buildings.

In this complete guide, you will learn how to install a wireless theft alarm system using the Tuya Smart App step-by-step, along with important tips to ensure proper installation.

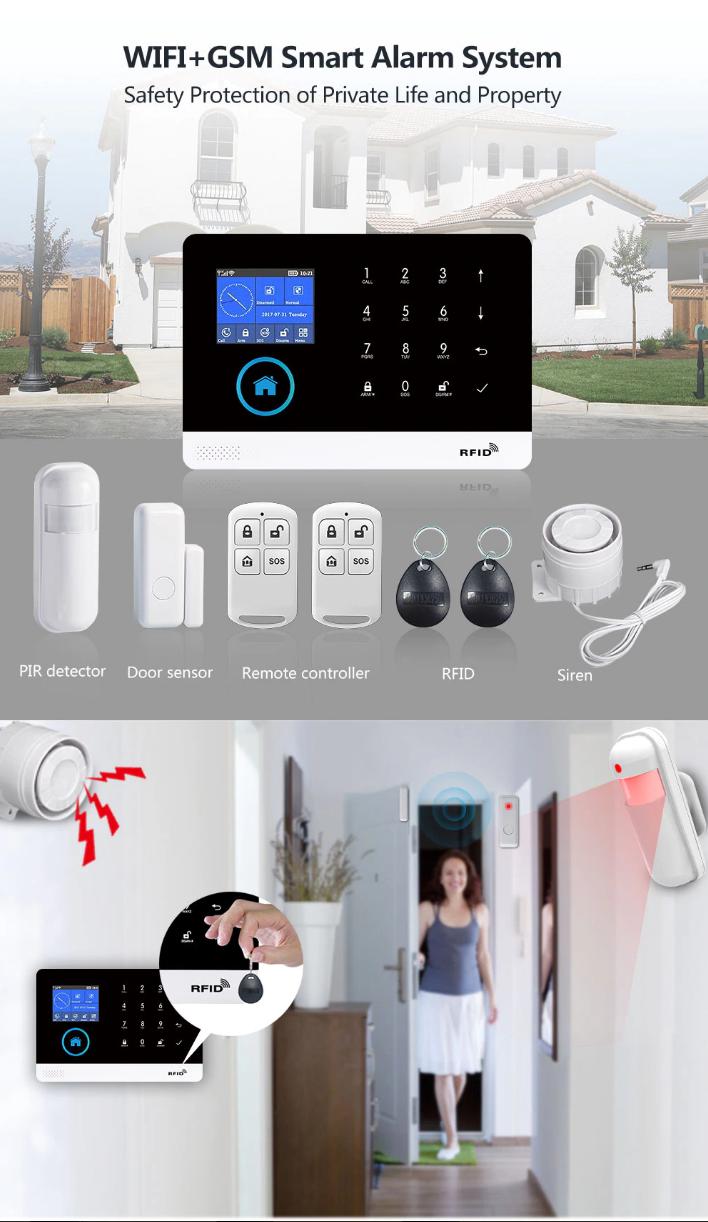

What Comes in a Wireless Theft Alarm System Kit?

Most Tuya-supported wireless alarm kits include the following components:

Control Panel

This is the main unit of the alarm system. It connects all sensors and communicates with the Tuya Smart App.

Door and Window Sensors

These sensors detect when doors or windows are opened.

PIR Motion Sensor

Motion sensors detect movement inside rooms.

Siren Alarm

The siren produces a loud sound when an intrusion is detected.

Remote Controls

Remote controls allow quick arming and disarming of the system.

Tools Required for Installation

Wireless alarm systems require minimal tools:

• Screwdriver
• Drill machine (optional)
• Double-sided tape
• Mobile phone
• WiFi connection

Most wireless sensors can be installed using adhesive tape, making installation simple.

Step 1 - Choose the Right Location for the Control Panel

The control panel is the heart of the system. It should be placed in a central location where it can communicate easily with all sensors. Recommended locations include:

• Near the main entrance
• Close to the WiFi router
• At an accessible height

Avoid placing the control panel inside metal cabinets or closed areas.

Step 2 - Install Door and Window Sensors

Install sensors on main entrance doors, back doors and windows. Attach one part of the sensor to the door frame and the other to the door itself. Make sure both parts align correctly. When the door opens, the sensor detects separation and triggers an alert.

Step 3 - Install PIR Motion Sensors

Install motion sensors in living rooms, hallways and near entry points. Mount the sensor at a height of about 6-7 feet and ensure it faces areas where movement is likely to occur. Avoid placing sensors near fans or windows.

Step 4 - Connect the Control Panel to Power

Connect the control panel to a power source using the provided adapter and turn it ON. Most panels include backup batteries to keep the system running during power failures.

Step 5 - Install the Tuya Smart App

1. Install the app
2. Create a new account
3. Connect your smartphone to WiFi
4. Open the app

Step 6 - Connect the Alarm System to WiFi

Put the control panel into pairing mode, then:

1. Open the Tuya app
2. Tap "Add Device"
3. Select alarm system
4. Enter your WiFi password
5. Wait for connection

After successful pairing, the alarm system will appear in the app dashboard.

Step 7 - Test the Alarm System

Open a door to trigger the sensor and check that:

• The alarm siren activates
• A mobile notification appears
• The motion sensor detects movement

Common Installation Mistakes to Avoid

One common mistake is installing sensors too far from the control panel. Another is placing motion sensors facing windows. Weak WiFi signals can also affect system performance. Always test sensors after installation.

Maintenance Tips After Installation

Check batteries regularly. Test the alarm system once every month. Clean sensors if dust accumulates. Update the Tuya app when new versions are available.

Tips to Install a Wireless Theft Alarm System Correctly

• Place the main hub in a central location with good WiFi signal, away from walls that block range
• Mount door and window sensors so the two halves align closely when closed
• Test each sensor in the app immediately after mounting, before finishing installation
• Set up scheduled arming/disarming to match your daily routine

Frequently Asked Questions

How long does installation take?

A basic setup with a hub, a few door/window sensors, and one motion sensor typically takes 30-45 minutes, since most sensors use adhesive mounting and pair with the app in a few taps.

Can I add more sensors later?

Yes - wireless systems are designed to expand. You can add more door/window sensors or motion detectors to the same hub as your needs grow.

What if the hub loses WiFi connection?

Most hubs still sound a local siren if a sensor triggers, even without internet, though app notifications will not reach your phone until the connection is restored.

Conclusion

With proper placement of sensors and correct setup through the app, you can create a strong security system without complicated wiring.
