How to Install a Monitor Hydraulic Mount Step-by-Step

Introduction

A monitor hydraulic mount is one of the best upgrades for a modern workspace. Many people want one but feel unsure about installation. The good news is that fitting a monitor arm is usually simple and needs only basic tools.

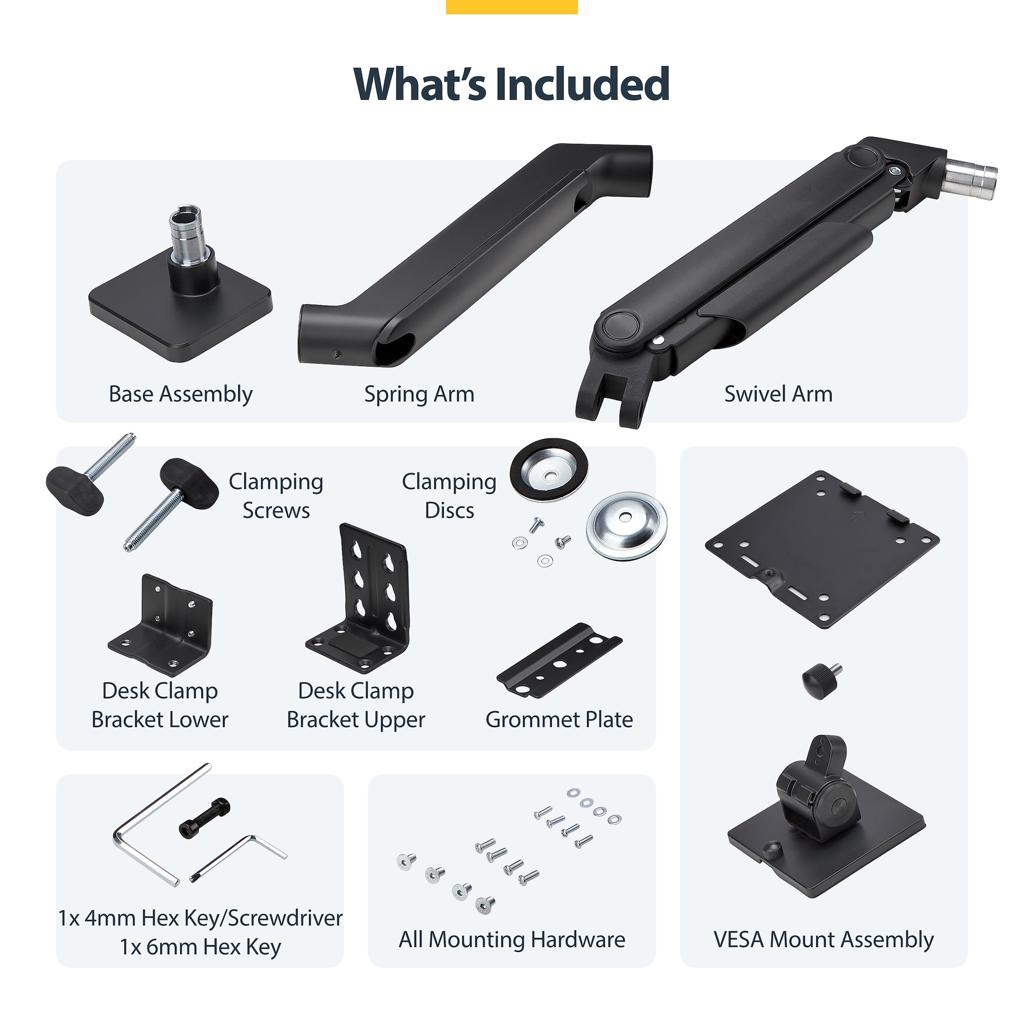

What Comes in the Package

• Monitor arm
• Desk clamp
• VESA mounting plate
• Screws
• Allen key
• Cable clips
• User manual

Some models also include grommet mounting hardware for desks with cable holes.

Tools Required

• Screwdriver
• Allen key (usually included)
• Measuring tape
• Soft cloth
• Drill, only for grommet mounting

Step 1: Check Monitor Compatibility

Check monitor size, monitor weight, VESA mounting holes and desk thickness. Most arms support 75x75mm or 100x100mm VESA patterns. If your monitor has no VESA holes, you need an adapter.

Step 2: Choose the Installation Location

Choose a strong, stable part of the desk, usually the back edge. Make sure there is room for the arm to move. Avoid weak or damaged surfaces.

Step 3: Attach the Desk Clamp

Place the clamp on the back edge and tighten until secure. Do not over-tighten, which can mark or damage the desk. Use a protective pad on thin or delicate surfaces.

Step 4: Attach the Arm to the Clamp

Insert the arm into the clamp base, making sure it is fully seated, and tighten any locking screws. Move the arm slightly to check it does not wobble.

Step 5: Attach the VESA Plate

Place the monitor face down on a soft cloth to avoid scratches. Attach the VESA plate with the provided screws, tight but not over-tightened. This plate carries the monitor's weight, so it must be firm.

Step 6: Mount the Monitor onto the Arm

Lift the monitor and attach it. Some mounts slide in, others screw on. Make sure it locks securely. With a large monitor, have someone help. Release it gently to check stability.

Step 7: Adjust Gas Spring Tension

If the monitor drops, tension is too loose. If it rises, tension is too tight. Adjust slowly with the Allen key, testing after each turn. Correct tension holds the screen at any height.

Step 8: Set Height, Tilt and Rotation

Set the screen at eye level to improve posture, then adjust height, tilt, swivel and rotation. You can rotate into portrait mode for long documents or code.

Step 9: Organise Cables

Route HDMI, DisplayPort and power cables through the built-in clips or channels. Leave enough slack for the monitor to move freely.

Common Installation Mistakes

• Not checking monitor weight
• Ignoring VESA compatibility
• Over-tightening the desk clamp
• Forgetting tension adjustment
• Poor cable management

Safety Tips

Always support the monitor while mounting. Do not fit heavy monitors to weak desks. Check all screws before use. Ask for help with large screens.

Frequently Asked Questions

How long does installation take?

Most installations take 15 to 30 minutes once you have confirmed your monitor's VESA pattern and desk clearance.

Why is my newly installed arm sagging?

That is a tension adjustment issue, not an installation mistake. Find the tension screw on the arm joint and tighten it to match your monitor's weight.

Can I install one without drilling my desk?

Yes. Clamp mounts need no drilling and attach to the desk edge, as long as your desk thickness is within the clamp's supported range.

Conclusion

With the right tools and a careful tension setting, a monitor arm takes under half an hour to fit and pays back immediately in posture and desk space.
