Common Monitor Arm Problems and How to Fix Them (Complete Troubleshooting Guide)

Introduction

Monitor hydraulic mounts improve comfort, save desk space and create a modern workspace. Like any adjustable product, they throw up some common problems after installation. These are usually easy to fix once you understand the cause.

Many people assume the arm is faulty when the screen starts sagging, tilting or moving on its own. In most cases the cause is incorrect tension adjustment, poor installation, the wrong monitor weight, or loose screws.

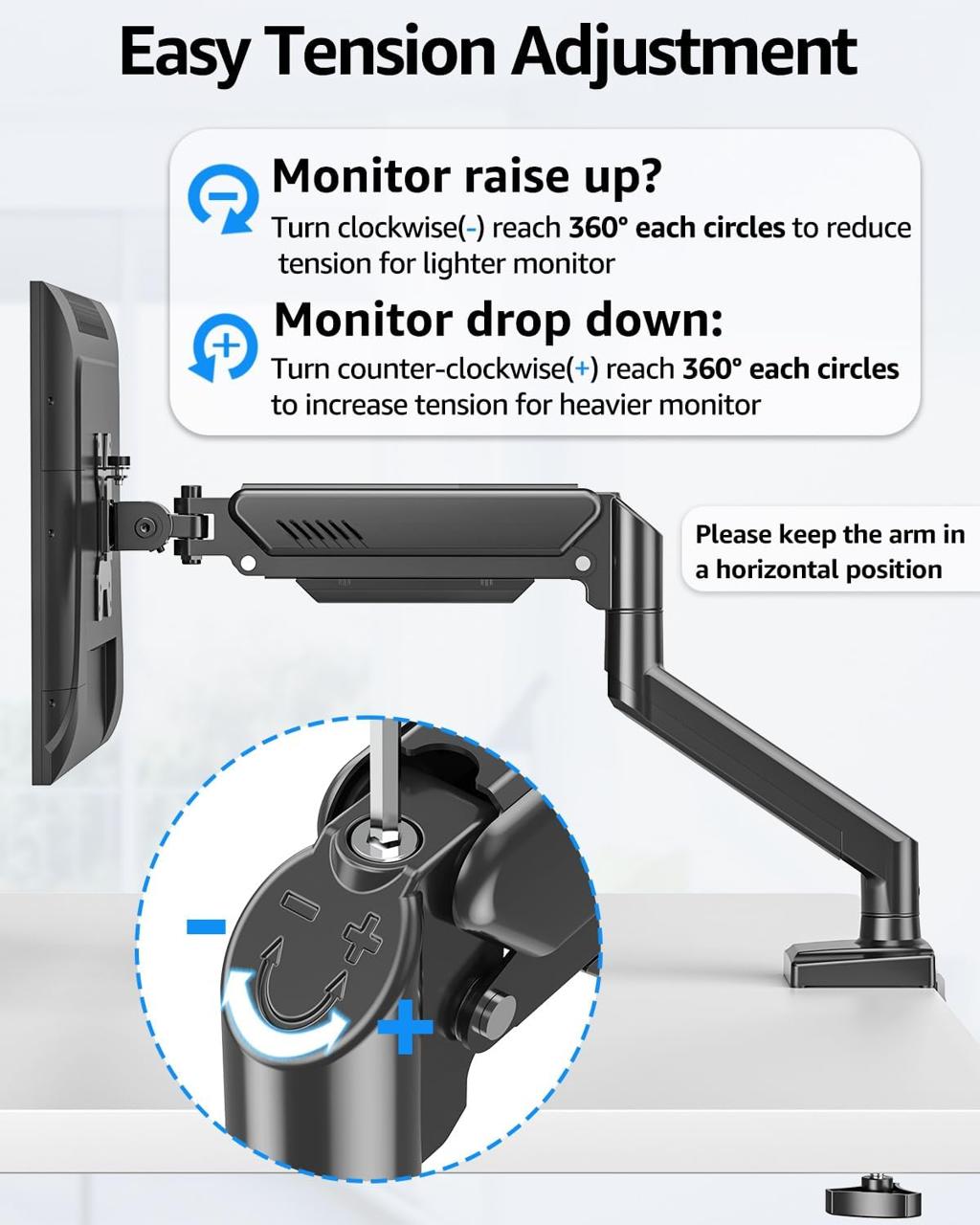

Problem 1: Monitor Arm Keeps Dropping Down

The arm slowly drops after adjustment. This happens when gas spring tension is too loose for the monitor's weight.

Most hydraulic arms have a tension adjustment screw controlling how much force holds the monitor. Use the provided Allen key and tighten it slowly, step by step, until the monitor stays put. Avoid tightening too much at once, since excessive tension makes movement stiff.

If it still drops, check whether your monitor weight is within the supported range.

Problem 2: Monitor Arm Moves Up by Itself

The opposite issue: tension is too tight, so the spring pushes the monitor upward. Loosen the tension screw slightly, testing up and down movement after each adjustment. Correct tension holds position without drifting either way.

Problem 3: Monitor Tilts Forward or Falls Down

If your monitor tilts forward or will not stay upright, the tilt joint is loose. Locate the tilt adjustment screw behind the mounting plate and tighten it carefully. Also check the VESA plate is securely attached, since loose VESA screws cause unstable movement.

Problem 4: Monitor Arm Feels Too Stiff

Tension too tight, or joints over-tightened. Loosen the tension screw slightly and test. Check all arm joints are not over-tightened. A good arm moves smoothly while still holding the monitor securely.

Problem 5: Monitor Arm Feels Loose or Wobbly

Usually the desk clamp or mounting base. Tighten the clamp under the desk and make sure the desk surface is strong enough. Thin or weak desks cause instability. A reinforcement plate under the clamp distributes weight evenly and protects the surface.

Problem 6: Monitor Does Not Fit the Arm

Usually because the monitor does not support VESA mounting. Most arms need a 75x75mm or 100x100mm pattern. Check the back of your monitor for mounting holes. If there are none, you need a VESA adapter.

Problem 7: Arm Cannot Support a Heavy Monitor

Every arm has a weight limit. Above it, the arm sags, tilts or fails to hold position. Compare your monitor's weight to the arm's capacity. If it is too heavy you need a heavy-duty arm, since an underpowered one can damage both mount and monitor.

Problem 8: Dual Monitors Are Not Aligned

Usually because the monitors differ in size or weight. Adjust each arm separately, setting both to the same height first, then tilt and angle. With different models, perfect alignment may not be possible, but a comfortable setup still is.

Problem 9: Cable Management Looks Messy

Most arms include cable clips or channels. Route power and HDMI cables through them, using cable ties if needed. Leave enough slack for movement.

Problem 10: Desk Clamp Leaves Marks

Some clamps mark wooden desks if over-tightened. Use a protective pad between clamp and desk, or a reinforcement plate to spread the pressure.

Tips to Avoid These Problems

• Check monitor weight before buying
• Confirm VESA compatibility
• Tighten screws properly
• Adjust gas spring tension correctly
• Use a strong desk surface
• Manage cables neatly

Quick Reference

Problem	Likely fix
Arm drifts or sags downward	Tighten the tension adjustment screw on the arm joint
Monitor will not stay level	Check the VESA plate is fully seated and screws are tight
Clamp will not grip desk	Confirm desk thickness is in range, or switch to a grommet mount
Arm will not extend or retract fully	Check for wall or desk-ridge clearance blocking movement

Frequently Asked Questions

Why does my monitor arm keep drooping?

Almost always tension. The gas spring needs adjusting to match your monitor's actual weight. Most arms have a small hex or Phillips screw at the joint for exactly this.

Can a monitor arm problem damage my monitor?

A loose or poorly tensioned arm can drop the monitor suddenly, which can damage the screen. If you notice drift or looseness, deal with it rather than leaving it.

When should I replace an arm instead of fixing it?

If the tension mechanism is worn and no longer holds adjustment even after tightening, or a joint has cracked, replacement is more practical than repair.

Conclusion

Most sagging, stiffness, wobble and alignment problems are fixed with simple adjustments. Knowing your monitor's weight, VESA pattern and desk strength prevents most of them before they start.
