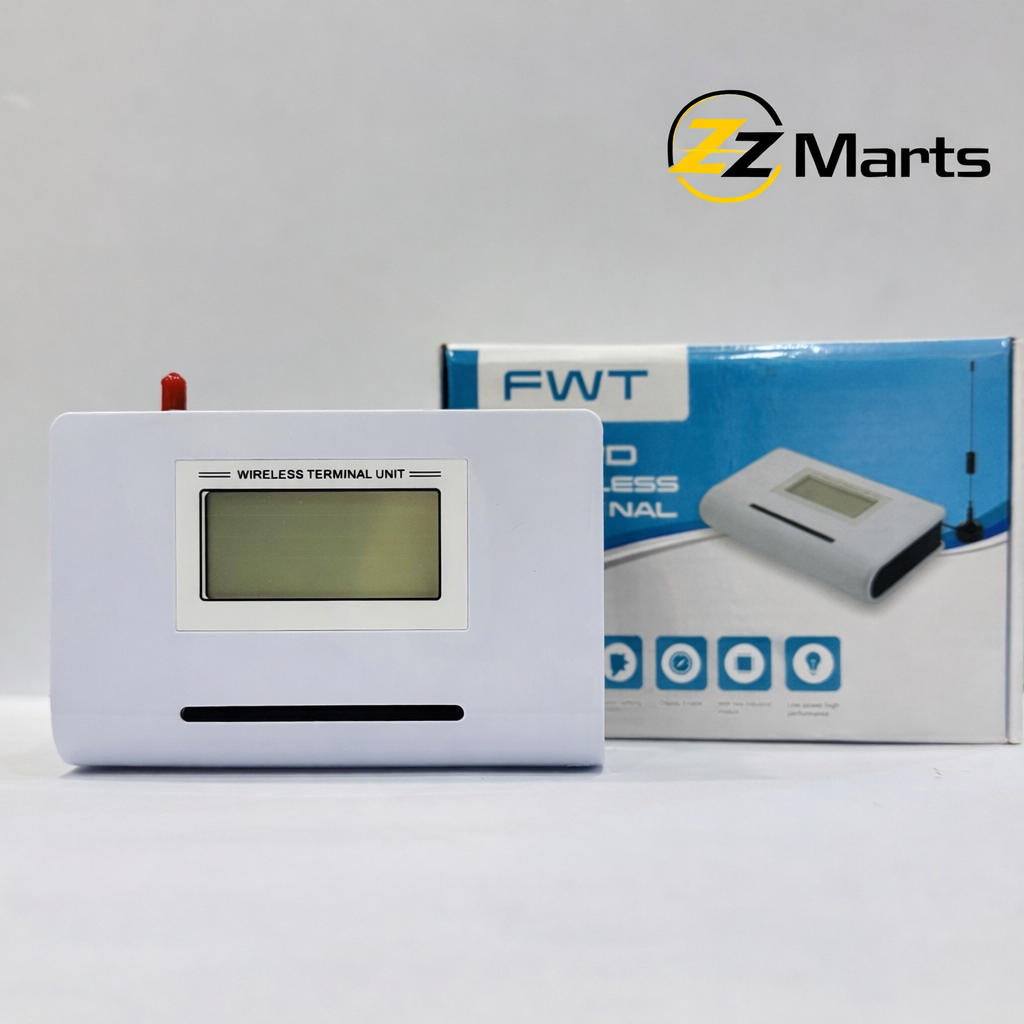

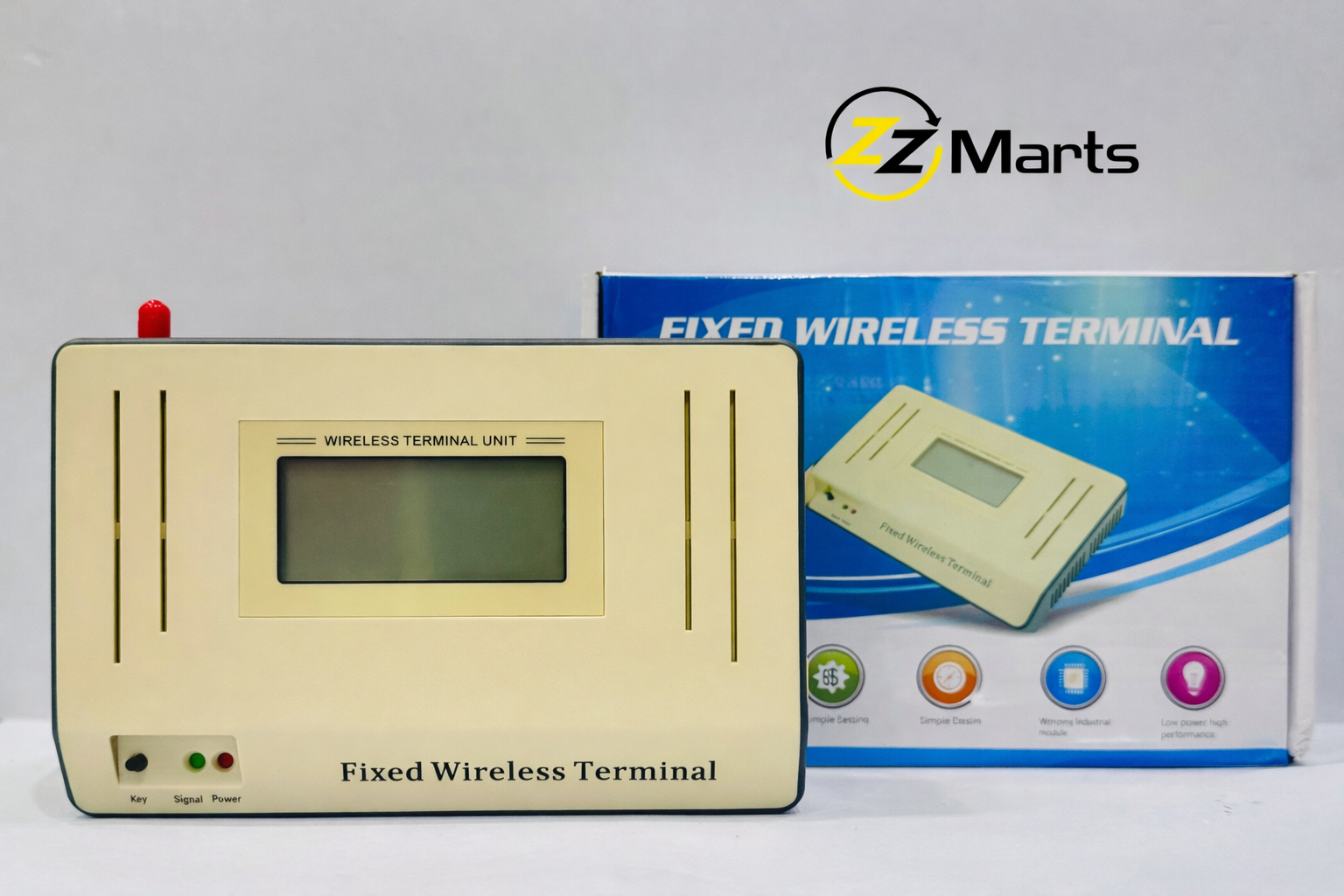

GSM Wireless Terminal Unit with LCD – SIM-Based Alarm Communication Device

Description

The GSM Wireless Terminal Unit with LCD is a professional SIM-based security communication device designed for alarm and monitoring systems where internet connectivity is unavailable or unreliable. Using a GSM mobile network, it transmits alerts, status updates, and system information efficiently.

Equipped with a clear LCD display, the terminal provides real-time visual feedback of system status, signal strength, and alerts. It is commonly used as a wireless alarm terminal, receiving and displaying information from connected sensors or alarm panels.

This GSM terminal unit is widely deployed in banks, shops, offices, warehouses, ATMs, remote sites, and security control rooms. Its standalone operation makes it an excellent choice for locations requiring reliable, independent alarm communication.

Network & Power Details

• Network Type: GSM (SIM supported)

• SIM Card: Standard SIM

• Operating Voltage: DC 12V (typical)

What a GSM terminal unit actually does. This is a SIM based communication device that gives an alarm system, or a landline telephone, a connection over the mobile network instead of a fixed line. It takes an ordinary SIM card and presents a standard telephone connection, so equipment expecting a landline can work over GSM instead. The LCD shows system status, signal strength, and alert information at a glance.

The two situations that make people buy one. First, converting a PSTN alarm panel to mobile alerting. If you already own a telephone line panel and either have no landline or worry about the line being cut, this terminal lets that panel dial out over GSM without replacing the panel itself. Second, providing telephone service where no landline exists, which is common at farmhouses, remote sites, construction offices, warehouses, and newly built premises where a fixed line has never been installed.

Why cutting a phone line matters. A landline based alarm can be silenced by cutting the incoming cable before entry, and it fails silently. Anyone who knows the building can find the line. A GSM connection has no cable to cut, which is why higher risk premises move to mobile alerting. Adding this terminal is usually far cheaper than replacing an entire PSTN panel that is otherwise working perfectly well.

Checking signal before you install. This is the step people skip. The terminal needs usable mobile coverage at its mounting position, and a spot inside a metal cabinet, a basement, or a thick walled store room may have far weaker signal than the same building’s front room. Check coverage with a phone at the exact position first. The LCD shows signal strength, so you can confirm after installation and reposition if the reading is marginal rather than discovering the problem the night it matters.

SIM card practicalities, and the failure we hear about most. The terminal needs an active SIM with credit or a valid package. Prepaid connections that expire through inactivity are the single most common reason a GSM alerting setup fails, because everything looks healthy for months and then the call simply does not go through. Choose a package that does not lapse, or set a recurring reminder to check it. Test an actual outgoing call periodically rather than assuming.

Power and load shedding. The unit runs continuously and is designed for 24/7 operation with low consumption, but it still needs power. If it is providing alerting for an alarm system, put it on the same backup supply as the panel. A GSM terminal without backup power leaves the alarm unable to call out during exactly the outage periods when premises are most exposed, which defeats the purpose of fitting it.

Where it is typically installed. Offices, control rooms, shop counters, warehouse security desks, farmhouses, and remote sites. The compact desktop design suits a counter or shelf rather than a wall enclosure. If it is part of a security installation, mount it out of sight and out of easy reach along with the panel, since a visible communication device is an obvious target.

Programming who gets called. Where it serves an alarm panel, the numbers are programmed at the panel rather than here. Set two or three recipients, including someone usually near the premises, because a system that only calls a travelling owner achieves nothing. Test the full chain from sensor to phone after installation, not just that the terminal shows signal.

Choosing between this and a GSM panel. If you already own a working PSTN alarm panel, this terminal is the economical route to mobile alerting. If you are specifying a new system from scratch, a purpose built GSM alarm panel is usually the cleaner choice, since it integrates the communication and control functions in one enclosure. Tell us what you already have and we will tell you honestly which route costs less overall.

Does it need internet? No. It works entirely over the mobile network using a SIM card, independent of broadband and WiFi.

Can I use it with any alarm panel? It works with panels expecting a standard telephone line connection. Tell us your panel model and we will confirm compatibility before you order.

Will it work during load shedding? Only with backup power. Put it on the same backup supply as your alarm panel.

Can it be used as an ordinary telephone line? Yes, that is one of its common uses at sites with no fixed line available.

Buying from ZZ Marts. In stock at our Karachi (Saddar) and Lahore stores with nationwide delivery, supplied by Zam Zam Traders, trading in security and communication equipment since 2005. We also stock GSM and PSTN alarm panels, wired and wireless sensors, perimeter beam sensors, sirens, and backup power supplies. Tell us what panel you are using and where the site is, and we will confirm whether this terminal or a GSM panel is the better answer.
