Multiple Heights Available: 4×4×1.5mm, 4×4×2.0mm, 4×4×2.5mm, 4×4×3.0mm, 4×4×3.4mm.
Surface-Mount SMD Design: Suitable for reflow soldering and high-volume PCB assembly.
Momentary Normally-Open Action: Closes circuit only when pressed.
Low-Profile & Compact Size: Ideal for dense PCB layouts and slim device housings.
Reliable Tactile Feedback: Crisp click response for durable operation.
Wide Electronic Compatibility: Used in consumer electronics, IoT devices, and embedded systems.

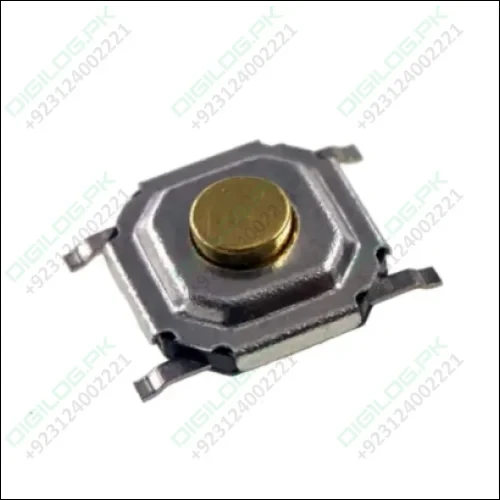

The 4×4mm SMD Tactile Switch series is designed for compact PCB applications requiring reliable momentary push-button control. Available in multiple height variations ranging from 4×4×1.5mm up to 4×4×3.4mm, this switch accommodates different board and enclosure depth requirements.
Featuring normally-open momentary operation, the switch closes only while pressed, making it ideal for power, reset, and function buttons. Its SMD terminal design supports automated production with stable reflow soldering and surface-mount PCB attachment.
This tactile switch series is widely used in consumer electronics, sensor modules, remote controls, IoT devices, and embedded control systems. The durable contact structure provides long mechanical life, consistent actuation force, and reliable tactile feedback.

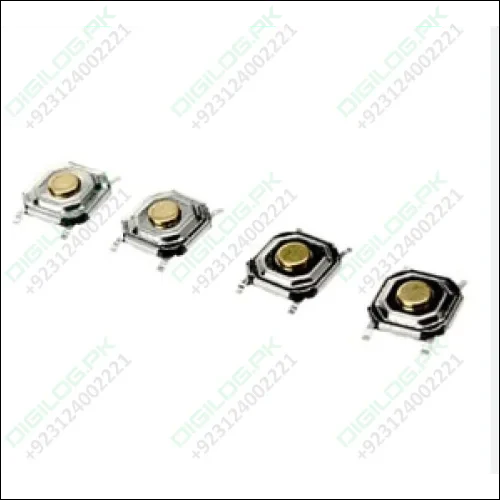

4×4×1.5 mm
4×4×2.0 mm
4×4×2.5 mm
4×4×3.0 mm
4×4×3.4 mm
Type: Momentary tactile push button
Size: 4×4mm base footprint
Height Options: 1.5mm–3.4mm
Pins: SMD surface mounting terminals
Contact: Normally Open
Operation: Tactile click activation
Applications: Compact PCBs, IoT boards, handheld devices, embedded controllers
Q: What is the difference between height variations?
A: Height affects switch travel and placement clearance in enclosures.
Q: Is the switch normally open?
A: Yes, contact closes only while pressed.
Q: Can these switches be reflow soldered?
A: Yes, all variants support SMD reflow soldering.
IoT modules and controllers
Wearable and portable electronics
Reset/function button inputs
Consumer electronics and remotes
Development and prototype boards
PCB repair and production
| Size | 1.5MM, 1.8MM, 2.7MM, 3.4MM, 3.8MM |
|---|
