Technical Specifications

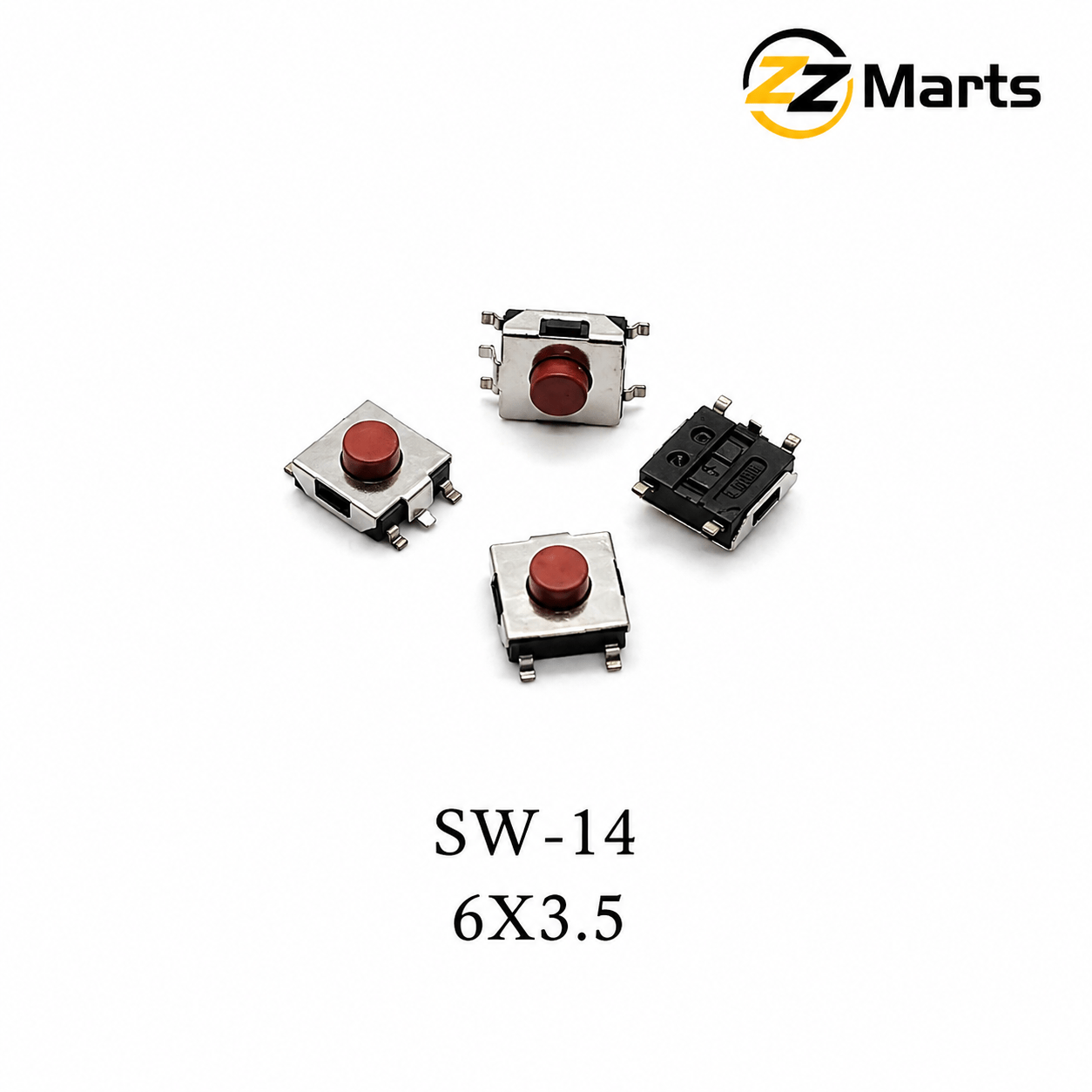

Product Type: SMD Tactile Push Button Switch
Model: SW-14
Switch Size: 6 × 6 × 3.5 mm
Number of Pins: 4 Pin (SMD)
Operation Type: Momentary (Push Button)
Contact Type: Normally Open (NO)
Mounting Type: Surface Mount (SMD)
Material: Metal Housing with Plastic Button
Button Color: Red (May vary by batch)
Application: Electronic Switching
🎯 Applications
Compact Electronic Devices
Remote Controls
Embedded Systems
Arduino & Microcontroller Projects
Consumer Electronics
Industrial Control Panels
IoT Devices
Electronic Repair
DIY Electronics
Frequently Asked Questions (FAQs)
Q1: What type of mounting does this switch use?
This switch uses SMD (Surface Mount Device) mounting, suitable for modern PCB layouts.
Q2: Is this switch suitable for compact electronics?
Yes, the low-profile 3.5mm height makes it ideal for compact devices.
Q3: What type of operation does this switch have?
It is a momentary tactile switch, meaning it only activates while pressed.
Q4: Can this switch be used in automated production?
Yes, it is designed for automated PCB assembly processes.
Q5: Where is this tactile switch commonly used?
It is widely used in remote controls, small electronics, and control boards.
