Technical Specifications

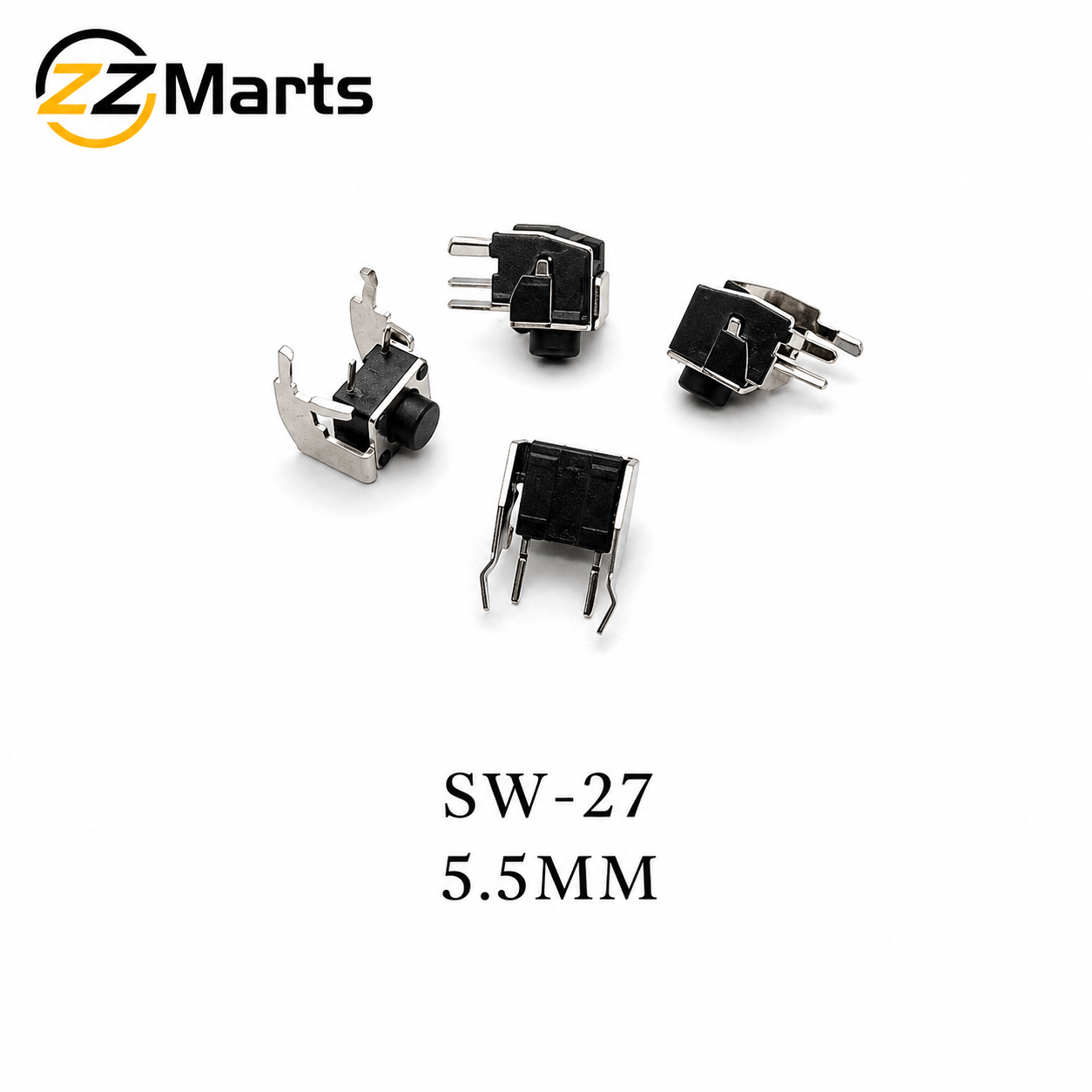

Product Type: Side Mount Tactile Switch
Model: SW-27
Switch Size: 5.5mm
Actuation Direction: Side (Horizontal / Right-Angle)
Mounting Type: Through-Hole with Metal Support Bracket
Number of Pins: 4 Pin (Typical Configuration)
Operation Type: Momentary (Push Button)
Contact Type: Normally Open (NO)
Material: Plastic Body + Metal Reinforcement
Button Type: Round Side Plunger
Application: Electronic Switching
🎯 Applications
Edge-Mounted PCB Designs
Control Panels
Consumer Electronics
Industrial Devices
Embedded Systems
DIY Electronics
Arduino Projects
Portable Devices
Repair & Replacement
High-Use Button Interfaces
Frequently Asked Questions (FAQs)
Q1: What is the purpose of the metal bracket?
The metal bracket adds mechanical strength, preventing loosening during repeated use.
Q2: Is this switch suitable for side panel buttons?
Yes, it is specifically designed for side push applications.
Q3: Is this switch momentary or locking?
It is a momentary switch, active only while pressed.
Q4: Where is this commonly used?
Used in consumer electronics, industrial controls, and compact devices.
Q5: Is it better than standard tactile switches?
For high durability and side mounting, yes—it offers extra stability and longer life.
