Technical Specifications

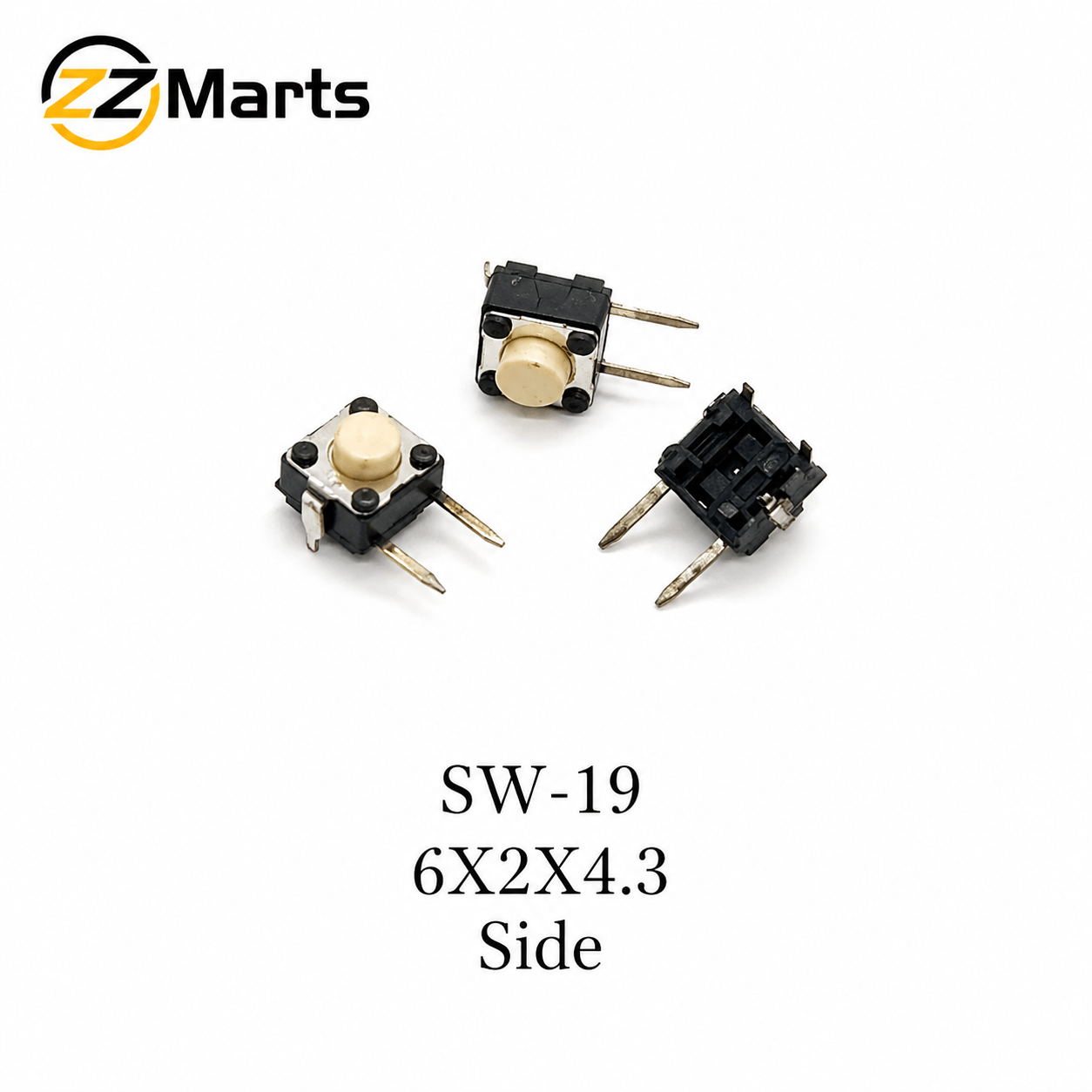

Product Type: Side Push Tactile Switch
Model: SW-19
Switch Size: 6 × 2 × 4.3 mm
Switch Type: Side Press (Right-Angle)
Number of Pins: 2 Pin
Operation Type: Momentary (Push Button)
Contact Type: Normally Open (NO)
Mounting Type: Through-Hole Right Angle
Material: Plastic Body with Metal Contacts
Button Color: Cream / Beige
Application: Electronic Switching
🎯 Applications
PCB Edge Controls
Portable Electronics
Embedded Systems
Remote Controls
Consumer Electronics
Control Panels
DIY Electronics
Arduino Projects
Electronic Repair
Compact Device Interfaces
Frequently Asked Questions (FAQs)
Q1: What is a side push tactile switch used for?
Side push switches are used where button access is required from the side of the PCB, especially near enclosures.
Q2: Is this switch momentary or locking?
This is a momentary tactile switch, active only when pressed.
Q3: Can this be mounted on PCB edges?
Yes, it is designed specifically for edge mounting and side activation.
Q4: Is this suitable for compact devices?
Yes, its small size and side press design make it ideal for compact electronics.
Q5: Where is this commonly used?
It is widely used in remote controls, handheld devices, and embedded electronics.
