Description
The ABT-15 IR Beam Sensor is a high-performance 15-meter infrared barrier detector designed for perimeter security and intrusion detection. It works by transmitting and receiving invisible infrared beams between two units. When the beam is interrupted, the sensor immediately sends a signal to the connected alarm or control panel.
This dual-beam IR system minimizes false alarms caused by birds, leaves, or environmental interference. It is widely used in homes, shops, warehouses, offices, factories, and boundary walls to secure entrances, gates, corridors, and restricted areas.
The ABT-15 supports NC/NO output, making it compatible with most alarm panels, access control systems, sirens, and smart relays. Its durable housing ensures stable operation in both indoor and outdoor conditions.
Whether you need to protect a gate, driveway, corridor, or boundary line, the ABT-15 IR beam sensor offers reliable, long-range, and cost-effective security protection.
Technical Specifications
-
Model: ABT-15
-
Detection Distance: Up to 15 meters
-
Technology: Dual Infrared Beam
-

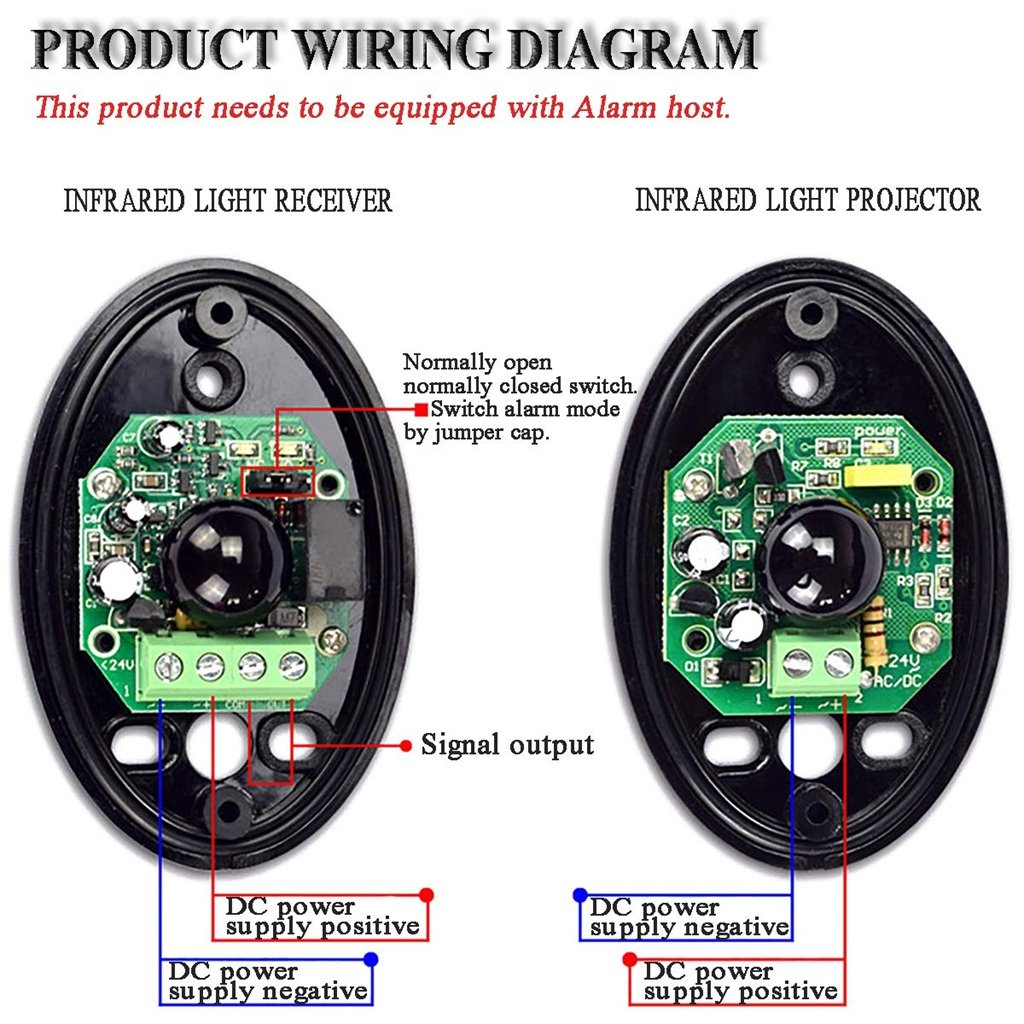

Output: NC / NO relay
-
Power Supply: 12V DC (typical)
-
Installation: Wall / pole mount
-
Usage: Indoor & outdoor
-
Application: Security & intrusion detection
FAQs
Q: What is an IR beam sensor?
A: It detects intrusion when an invisible infrared beam between two units is interrupted.
Q: Can it be used outdoors?
A: Yes, it is designed for both indoor and outdoor installations.
Q: Can I connect it to an alarm panel?
A: Yes, it supports NC/NO output for compatibility.
Q: Does it reduce false alarms?
A: Yes, dual-beam technology helps minimize false triggers.
Applications / Use Cases
-
Perimeter security systems
-
Gate and boundary protection
-
Driveway intrusion detection
-
Corridor and hallway monitoring
-
Warehouse and factory security
-
Smart home automation triggers
