Description

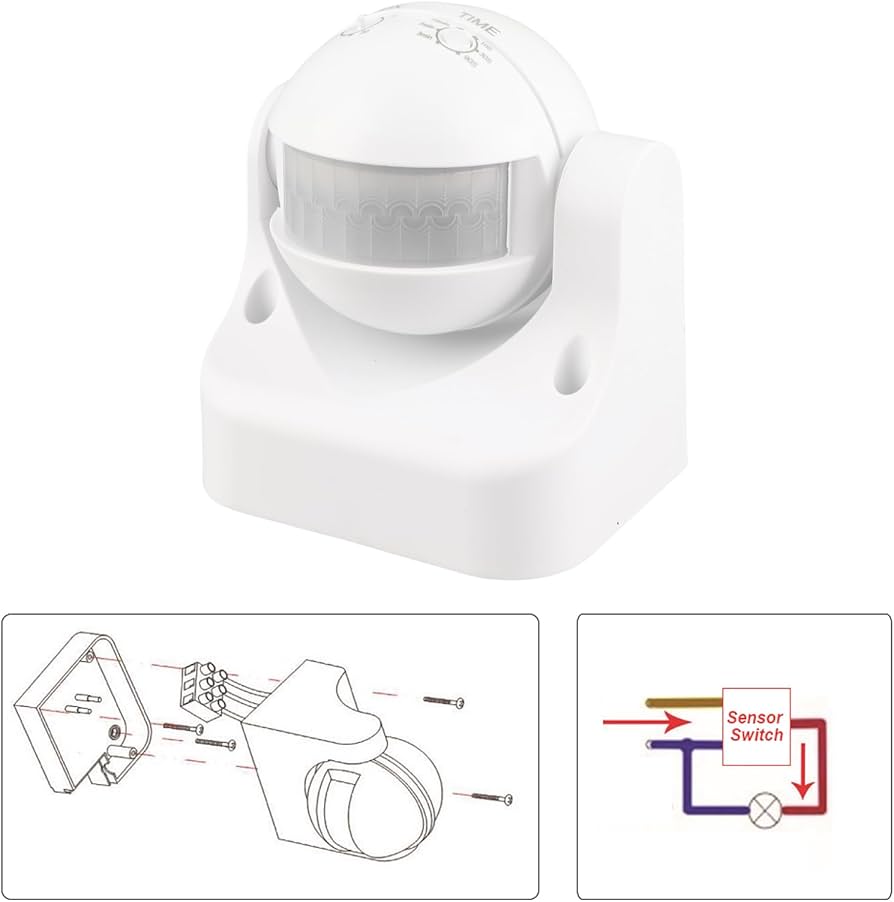

The 220V PIR Sensor Outdoor JQR is a durable weather-resistant motion sensor designed for automatic control of outdoor and indoor lighting. Built to operate directly on 220V AC, it eliminates the need for external adapters or smart controllers.
Using PIR (Passive Infrared) technology, the sensor detects human movement and automatically switches connected lights or electrical loads ON. After motion stops, it turns the load OFF based on the selected delay time. The built-in LUX (day/night) adjustment ensures lights activate only when needed, improving energy efficiency.
Designed for outdoor environments, this PIR sensor is commonly installed at entrances, gates, corridors, parking areas, balconies, staircases, shops, warehouses, and building exteriors. Available in two color options (White & Black), it blends easily with different wall finishes and exterior designs.
Load Capacity
Technical Specifications
-
Operating Voltage: 220V AC
-
Sensor Type: PIR (Passive Infrared)
-
Installation: Wall mounted
-
Detection Angle: Approx. 180°
-
Detection Distance: Approx. 8–12 meters
-
Adjustable Settings: Time delay, sensitivity & LUX
-
Weather Resistance: Outdoor suitable
-
Color Options: White / Black
FAQs
Q: Is this PIR sensor suitable for outdoor use?
Yes, it is designed for outdoor and semi-outdoor installations.
Q: Does it work directly on 220V AC?
Yes, no external power supply is required.
Q: Can it control LED lights?
Yes, LED and energy-saving lights within rated load are supported.
Q: What does JQR mean?
JQR refers to the outdoor wall-mounted PIR sensor body style.
Q: Are both colors the same specification?
Yes, white and black have identical specifications.
Applications / Use Cases
-
Outdoor entrances & gates
-
Parking areas & driveways
-
Building exteriors
-
Staircases & corridors
-
Shops & warehouses
-
Security and automatic outdoor lighting
