280KG Magnetic Lock – 5 Wire NO/NC Electromagnetic Door Lock with Status Output
280KG Magnetic Lock – 5 Wire NO/NC Electromagnetic Door Lock with Status Output
280KG Magnetic Lock – 5 Wire NO/NC Electromagnetic Door Lock with Status Output

280KG Magnetic Lock – 5 Wire NO/NC Electromagnetic Door Lock with Status Output

SKU: M280KG NO/NC

Key Features

• Strong Holding Force: 280KG High Security Strength
• 5-Wire Output with NO/NC Door Status Monitoring
• Fail-Safe Design (Unlocks When Power Is Off)
• 12V DC Operating Voltage
• Heavy-Duty Aluminum Alloy Body
• Compatible with Advanced Access Control Systems

In Stock
₨6,999.00 Original price was: ₨6,999.00.₨4,899.00Current price is: ₨4,899.00.
Order on WhatsApp
In Stock
Add to wishlist
SKU: M280KG NO/NC Categories: , Tags: , , , , , ,

Reviews

There are no reviews yet.

Be the first to review “280KG Magnetic Lock – 5 Wire NO/NC Electromagnetic Door Lock with Status Output”

Your email address will not be published. Required fields are marked *

Description

The 280KG 5-Wire Magnetic Lock (NO/NC) is a professional-grade electromagnetic door lock designed for high-security access control installations that require door status monitoring.

With a powerful 280KG holding force, this maglock provides maximum security for glass, wooden, and metal doors. The 5-wire output includes Normally Open (NO) and Normally Closed (NC) contacts, allowing real-time door lock status feedback to access control panels, biometric systems, and security controllers.

Operating on 12V DC, this lock features a fail-safe mechanism, which automatically unlocks when power is lost, ensuring safety during emergencies.

Its high-quality aluminum housing offers excellent durability, corrosion resistance, and long service life, making it ideal for commercial and industrial environments.

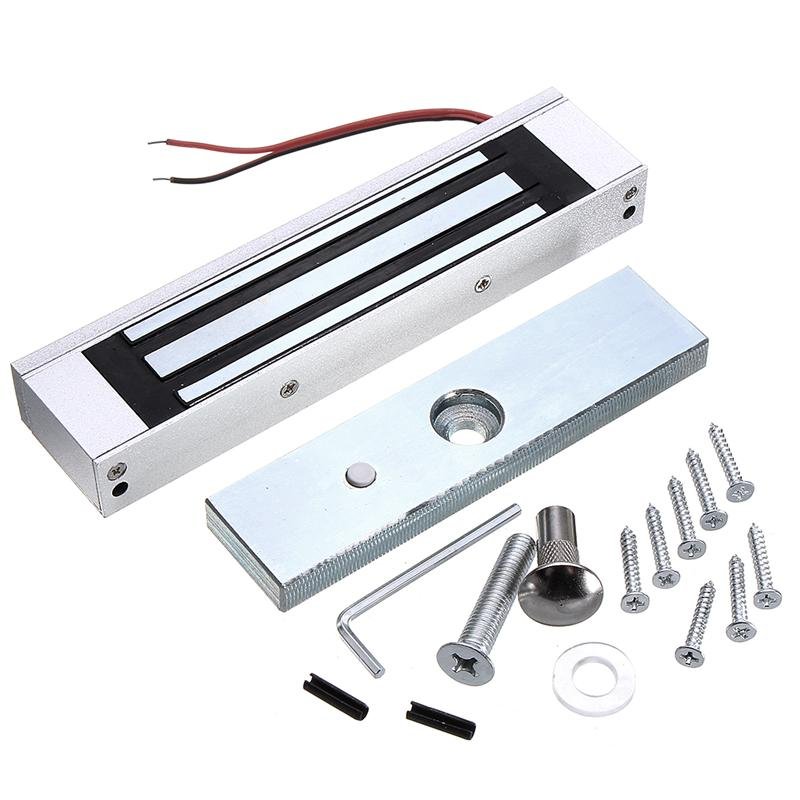

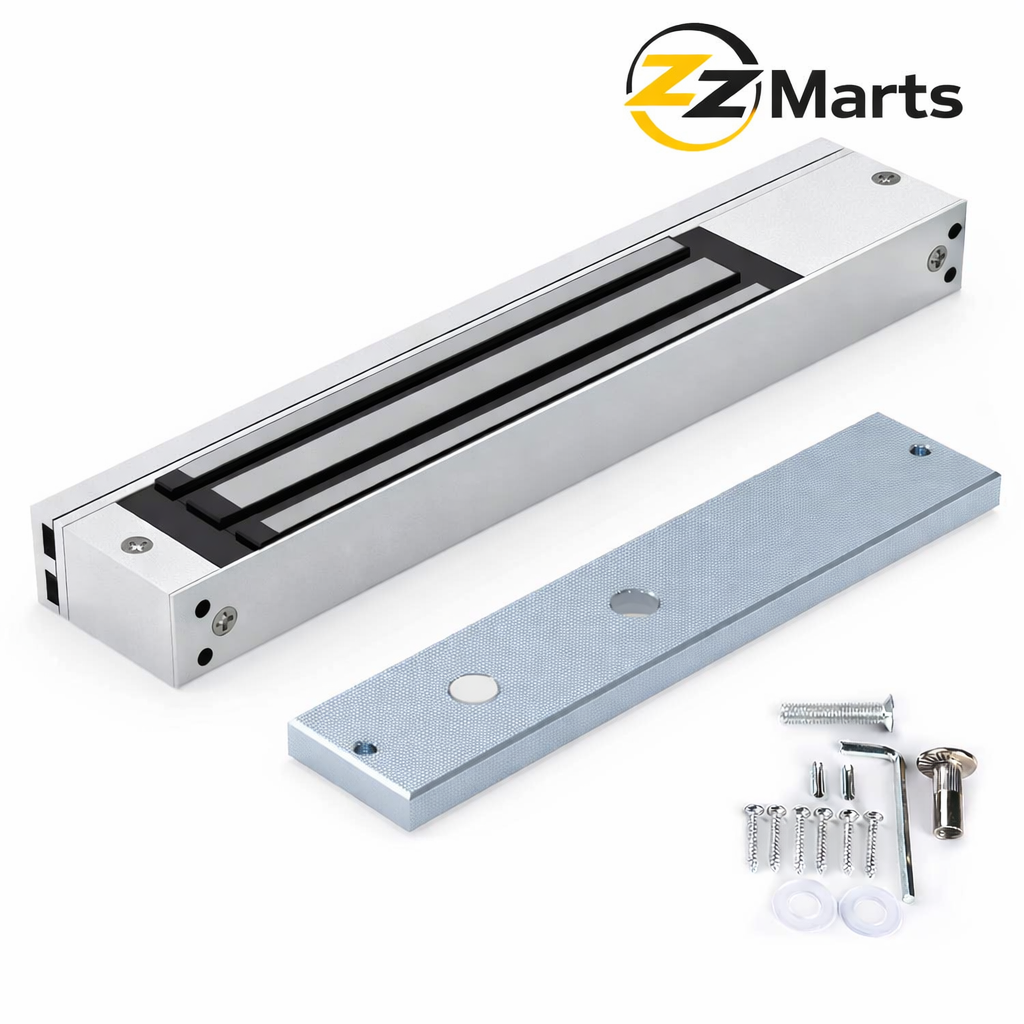

Package Includes

1 × 280KG Magnetic Lock (5-Wire NO/NC)

1 × Armature Plate

Mounting Screws

Installation Manual

Technical Specifications

Product Type: Electromagnetic (Magnetic) Lock

Holding Force: 280KG (Approx. 600 lbs)

Operating Voltage: 12V DC

Current Consumption: Approx. 500–600mA

Wiring Type: 5 Wire (Power + NO/NC Status Output)

Contact Type: NO / NC / COM

Material: Aluminum Alloy

Finish: Silver

Installation Type: Surface Mount

Lock Type: Fail-Safe (Power to Lock)

Usage: Indoor / Covered Outdoor

Application: Access Control & Monitoring Systems

🎯 Applications

Main Entrance Doors

Glass Doors

Office & Corporate Buildings

Shopping Malls

Hospitals & Clinics

Factories & Warehouses

Apartments & Flats

High-Security Restricted Areas

FAQs

Q1: What is the benefit of 5-wire NO/NC output?
It allows the access control panel to monitor door and lock status in real time.

Q2: Can this maglock work without monitoring?
Yes, it can be used as a normal maglock even without connecting status wires.

Q3: Does it unlock during power failure?
Yes, it is fail-safe and unlocks automatically when power is cut.

Q4: Is it compatible with biometric and RFID systems?
Yes, it works with most biometric, RFID, and keypad access controllers.

Q5: Can it be installed outdoors?
It is recommended for indoor or covered outdoor installations.
